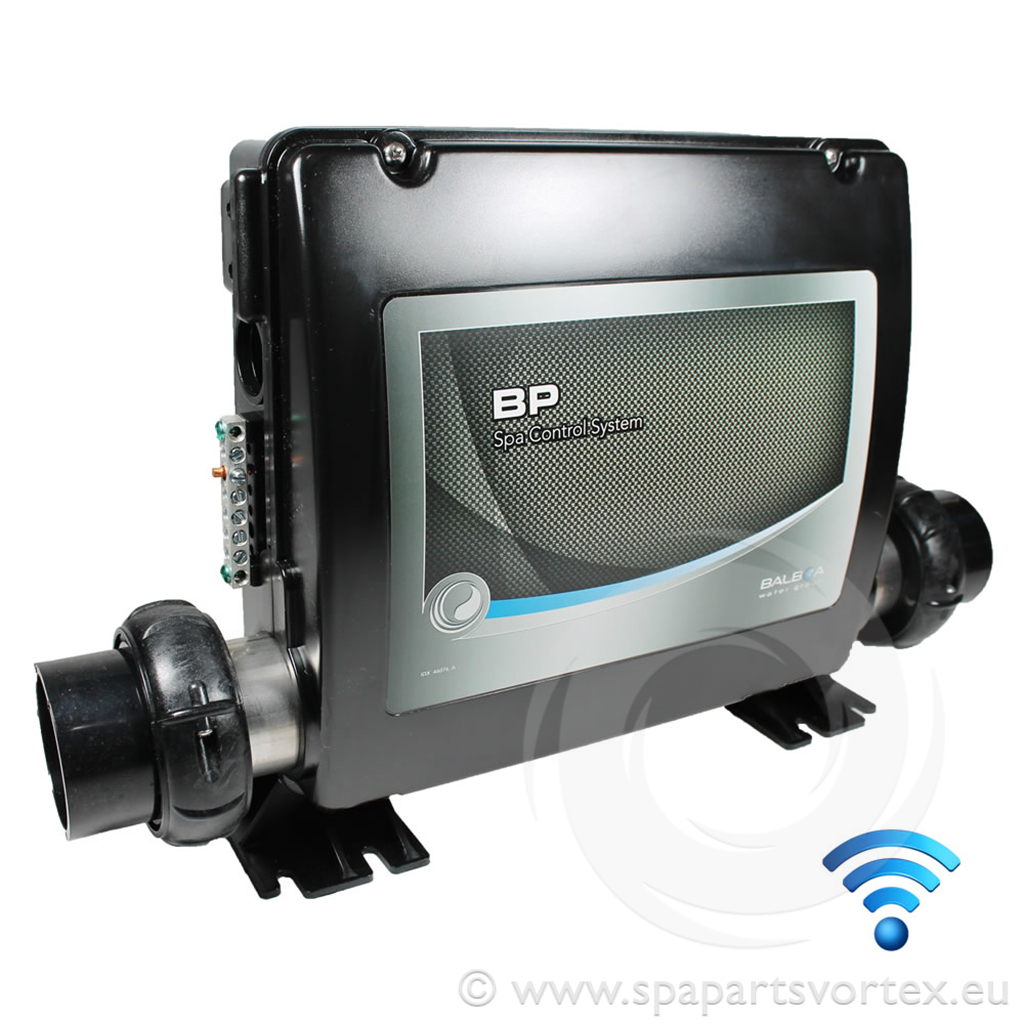

Balboa BP6013G2 Control Box WiFi Ready
3 Pumps + Circ + Blower + Ozone
Product Description
The Balboa BP6013G2 control box is a WiFi-ready spa system designed for flexible configurations. It accommodates up to three pumps (with Pump 3 or blower selectable), a circulation pump, ozone generator, and lighting. Equipped with a 3.0 kW heater and Balboa’s M7 technology, it eliminates the need for external sensors or flow switches. The unit is compatible with all Balboa TP and SpaTouch topside panels and supports both single-phase and three-phase 230 V installations. Factory preset for a single-speed pump and circulation pump; alternative setups are configurable via test mode.
Specifications:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2: Single-speed
- Pump 3 or Blower: Single-speed (only one can be connected at a time)
- Circulation Pump: Supported
- Ozone: Supported
- Lighting Output: 10 V @ 1 A
- Heater: 3.0 kW
- WiFi: Ready (module required)
- Topside Compatibility: Fits all Balboa TP and SpaTouch panels
- Power Supply: 230 V, 50 Hz, single-phase or three-phase
- Dimensions: 490 mm (L) x 270 mm (H) x 100 mm (D)
Quantity: Sold individually.
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : BP |
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : BP |
Product Description
The Balboa BP6013G2 control box is a WiFi-ready spa system designed for flexible configurations. It accommodates up to three pumps (with Pump 3 or blower selectable), a circulation pump, ozone generator, and lighting. Equipped with a 3.0 kW heater and Balboa’s M7 technology, it eliminates the need for external sensors or flow switches. The unit is compatible with all Balboa TP and SpaTouch topside panels and supports both single-phase and three-phase 230 V installations. Factory preset for a single-speed pump and circulation pump; alternative setups are configurable via test mode.
Specifications:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2: Single-speed
- Pump 3 or Blower: Single-speed (only one can be connected at a time)
- Circulation Pump: Supported
- Ozone: Supported
- Lighting Output: 10 V @ 1 A
- Heater: 3.0 kW
- WiFi: Ready (module required)
- Topside Compatibility: Fits all Balboa TP and SpaTouch panels
- Power Supply: 230 V, 50 Hz, single-phase or three-phase
- Dimensions: 490 mm (L) x 270 mm (H) x 100 mm (D)
Quantity: Sold individually.
