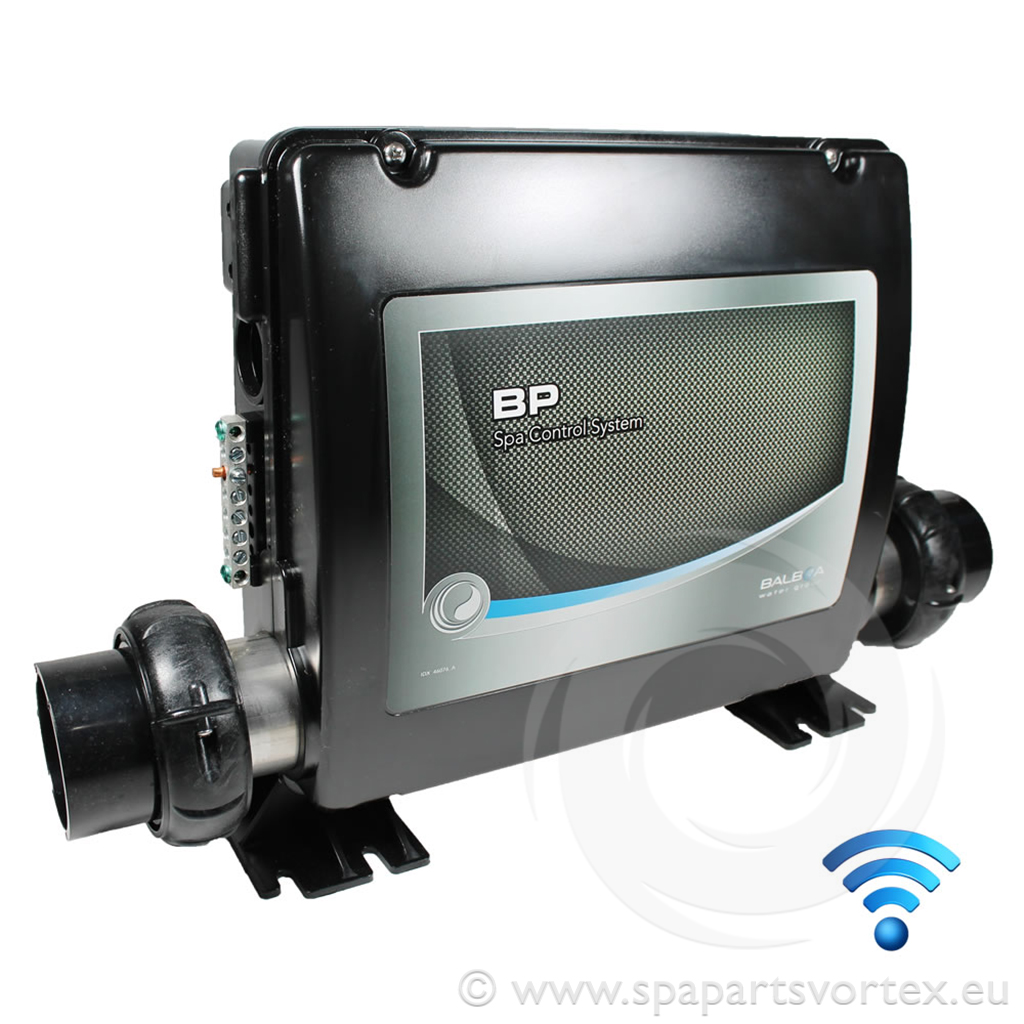

The Balboa BP9 is a versatile spa control box equipped with a 3.0 kW heater, designed to manage complex spa configurations. 100% replacement for BP2100G0, BP2100G1 and BP6013G2. It can control up to three jet pumps (all can be dual-speed), a circulation pump, a single-speed blower (only if no pump 3 or if pump 3 is single speed), ozone, and lighting. The system is WiFi-ready (module sold separately), allowing remote operation via compatible devices. It is compatible with all Balboa TP and SpaTouch topside panels and supports both single-phase and three-phase power connections.
Specifications:
-
Pump 1: Dual-speed or single-speed
-
Pump 2: Dual-speed or single-speed
-
Pump 3: Dual-speed or single-speed
-
Blower: Single-speed (if no pump 3 or pump 3 is single speed)
-
Circulation Pump: Yes
-
Ozone: Yes
-
Lighting Output: 10 VAC @ 2 A max
-
Heater: 3.0 kW Incoloy
-
WiFi: Ready (module required)
-
Topside Compatibility: All Balboa TP and SpaTouch panels
-
Power Supply: 230 VAC, single-phase or three-phase
-
Dimensions: 490 mm (L) x 270 mm (H) x 100 mm (D)
-
Quantity: Sold individually.
