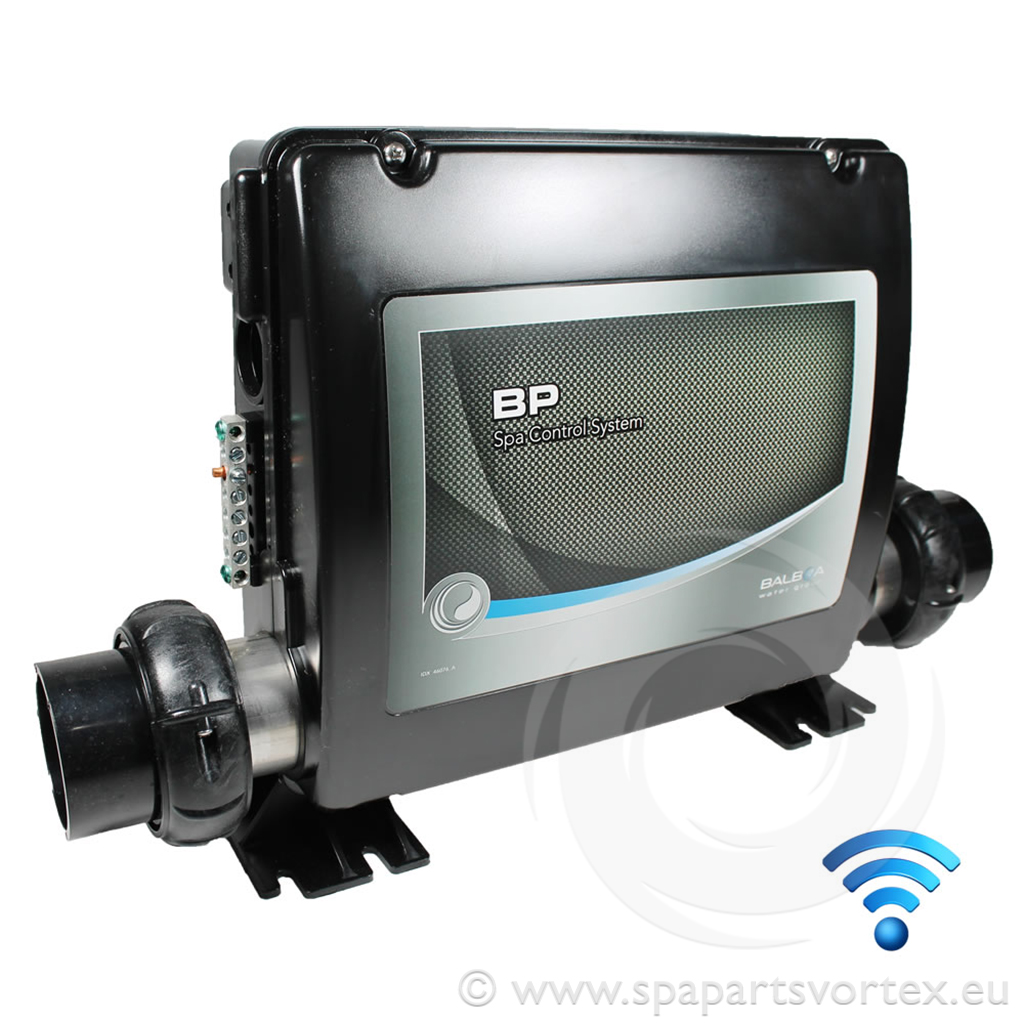

Balboa BP10 Control Box
Control Box with Heater Tube
Documents
Product Description
The Balboa BP10 Control Box with 3.0 kW heater is designed for advanced spa and swim spa setups. It replaces the Balboa BP214PBC control box (4pumps + Blower + Circulation pump) and the Balboa BP21MS3B control box (3pumps + Blower + Circulation pump + Microsilk pump) which are being discontinued by Balboa. It is important to note that the BP10 is indeed a combination of the BP214PBC and BP21MS3B in a single control box and it provides equivalent functionality for all BP214PBC and BP21MS3B applications/setups.
It supports a circulation pump, up to four pumps with single- or dual-speed options, an air blower, ozone, lighting, and AV connections. It operates on a 230 V, 50 Hz supply.
Specifications:
- Circulation Pump: Supported
- Pump 1: Single or dual-speed
- Pump 2: Single or dual-speed
- Pump 3: Single-speed
- Pump 4: Single-speed
- Air Blower: Single-speed (only possible if Pump 2 is single-speed)
- Heater: 3 kW
- Ozone: 1 connection
- Light: 1 unit, 10V
- AV: CHZ 230V connection available
- Power Supply: 230 V, 50 Hz
- Plumbing Size: 2" unions
- Dimensions (including heater): 490 mm (L) x 300 mm (H) x 120 mm (W)
- Dimensions (box only): 330 mm (L) x 300 mm (H) x 120 mm (W)
Quantity: Sold individually
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Plumbing Size : 2" |
| Product Type : Control Box |
| Model / Series : BP |
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Plumbing Size : 2" |
| Product Type : Control Box |
| Model / Series : BP |
Product Description
The Balboa BP10 Control Box with 3.0 kW heater is designed for advanced spa and swim spa setups. It replaces the Balboa BP214PBC control box (4pumps + Blower + Circulation pump) and the Balboa BP21MS3B control box (3pumps + Blower + Circulation pump + Microsilk pump) which are being discontinued by Balboa. It is important to note that the BP10 is indeed a combination of the BP214PBC and BP21MS3B in a single control box and it provides equivalent functionality for all BP214PBC and BP21MS3B applications/setups.
It supports a circulation pump, up to four pumps with single- or dual-speed options, an air blower, ozone, lighting, and AV connections. It operates on a 230 V, 50 Hz supply.
Specifications:
- Circulation Pump: Supported
- Pump 1: Single or dual-speed
- Pump 2: Single or dual-speed
- Pump 3: Single-speed
- Pump 4: Single-speed
- Air Blower: Single-speed (only possible if Pump 2 is single-speed)
- Heater: 3 kW
- Ozone: 1 connection
- Light: 1 unit, 10V
- AV: CHZ 230V connection available
- Power Supply: 230 V, 50 Hz
- Plumbing Size: 2" unions
- Dimensions (including heater): 490 mm (L) x 300 mm (H) x 120 mm (W)
- Dimensions (box only): 330 mm (L) x 300 mm (H) x 120 mm (W)
Quantity: Sold individually
