Control Box's & Systems

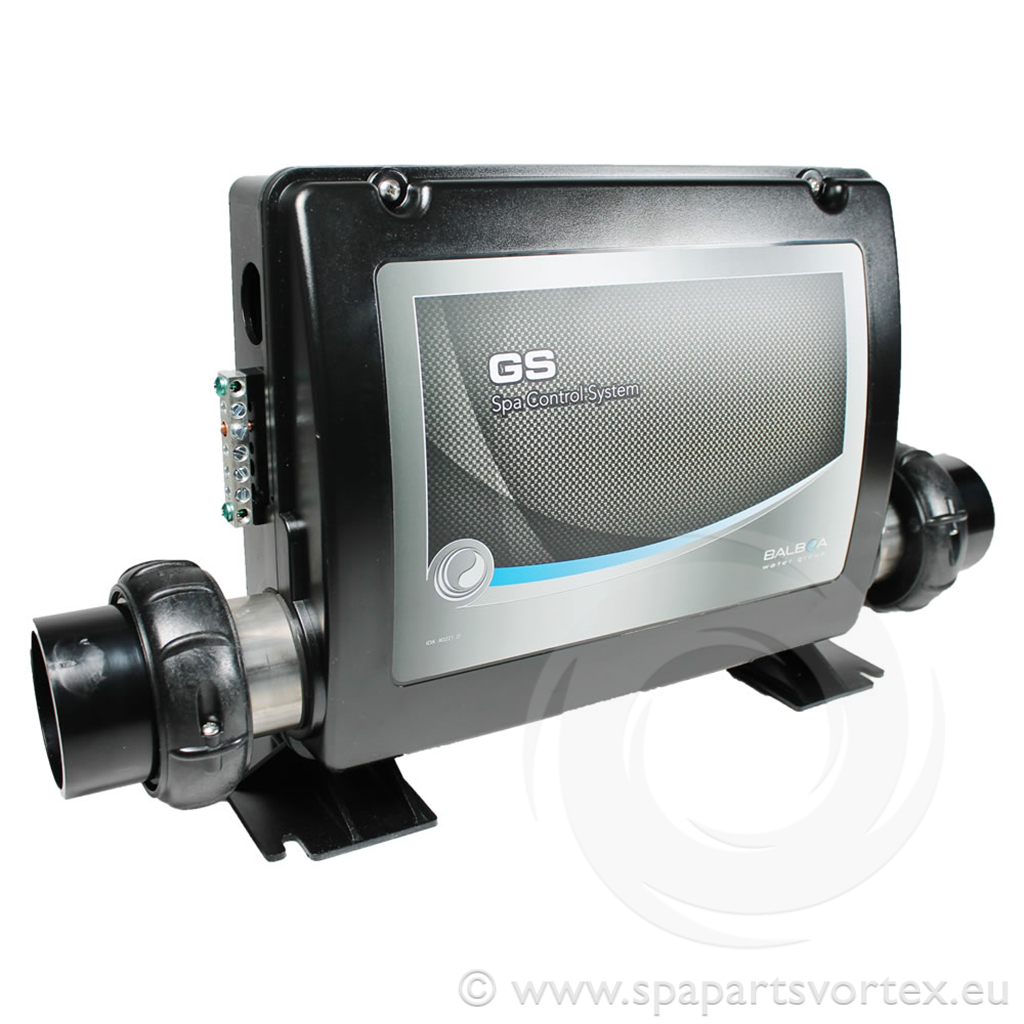

Balboa GS523DZ Control Box

https://www.spapartsvortex.uk/web/image/product.template/221/image_1920?unique=be33645

3 Pumps + Blower + Circ + Ozone

Not Available For Sale

  • Brand
  • Power kW
  • Product Type
  • Plumbing Size
  • Model / Series

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description
<p>
<strong><font style="background-color: rgba(255, 0, 0, 0.6);">NOTE :&nbsp;</font><strong><strong></strong></strong><font style="background-color: rgba(255, 0, 0, 0.6);">This control box is no longer manufactured by Balboa. You can either replace the PCB by a GS523DZ PCB or upgrade to a new Balboa BP pack (control box + topside).&nbsp;</font></strong><font style="background-color: rgba(255, 0, 0, 0.6);">&nbsp;&nbsp;</font></p><p>The Balboa GS523DZ control box is a 230 V spa system equipped with a 3.0 kW M7 heater. It supports three pumps (Pump 1 as dual-speed or single-speed with circulation pump, Pumps 2 and 3 as single-speed), an optional blower, ozone generator, and 12 V lighting. The unit is compatible with Balboa Deluxe VL series topside panels, such as the VL801D. It includes a dedicated port (J17) for either a blower or an additional single-speed pump, protected by a 10 A quick-blow fuse. The system operates on a 230 V, 50 Hz power supply and is suitable for retrofit or replacement installations.</p><p><strong>Specifications</strong>:</p><ul>
<li>
Pump 1: Dual-speed or single-speed (with circulation pump)
</li>
<li>
Pump 2: Single-speed
</li>
<li>
Pump 3: Single-speed
</li>
<li>
Blower: Optional
</li>
<li>
Circulation Pump: Supported
</li>
<li>
Ozone: Supported
</li>
<li>
Lighting Output: 12 V
</li>
<li>
Heater: 3.0 kW M7
</li>
<li>
Topside Compatibility: Balboa Deluxe VL series (e.g., VL801D)
</li>
<li>
Power Supply: 230 V, 50 Hz
</li>
<li>
Dimensions (with heater): 500 mm (L) x 270 mm (H) x 120 mm (W)
</li>
<li>
Dimensions (box only): 320 mm (L) x 270 mm (H) x 120 mm (W)
</li>
</ul><p><strong>Quantity: Sold individually.</strong></p><p>

</p><p>

</p><p>

</p>
Product Attributes
Brand : Balboa
Power kW : 3.0kW
Product Type : Control Box
Plumbing Size : 2"
Model / Series : GS
Product Attributes
Brand : Balboa
Power kW : 3.0kW
Product Type : Control Box
Plumbing Size : 2"
Model / Series : GS
