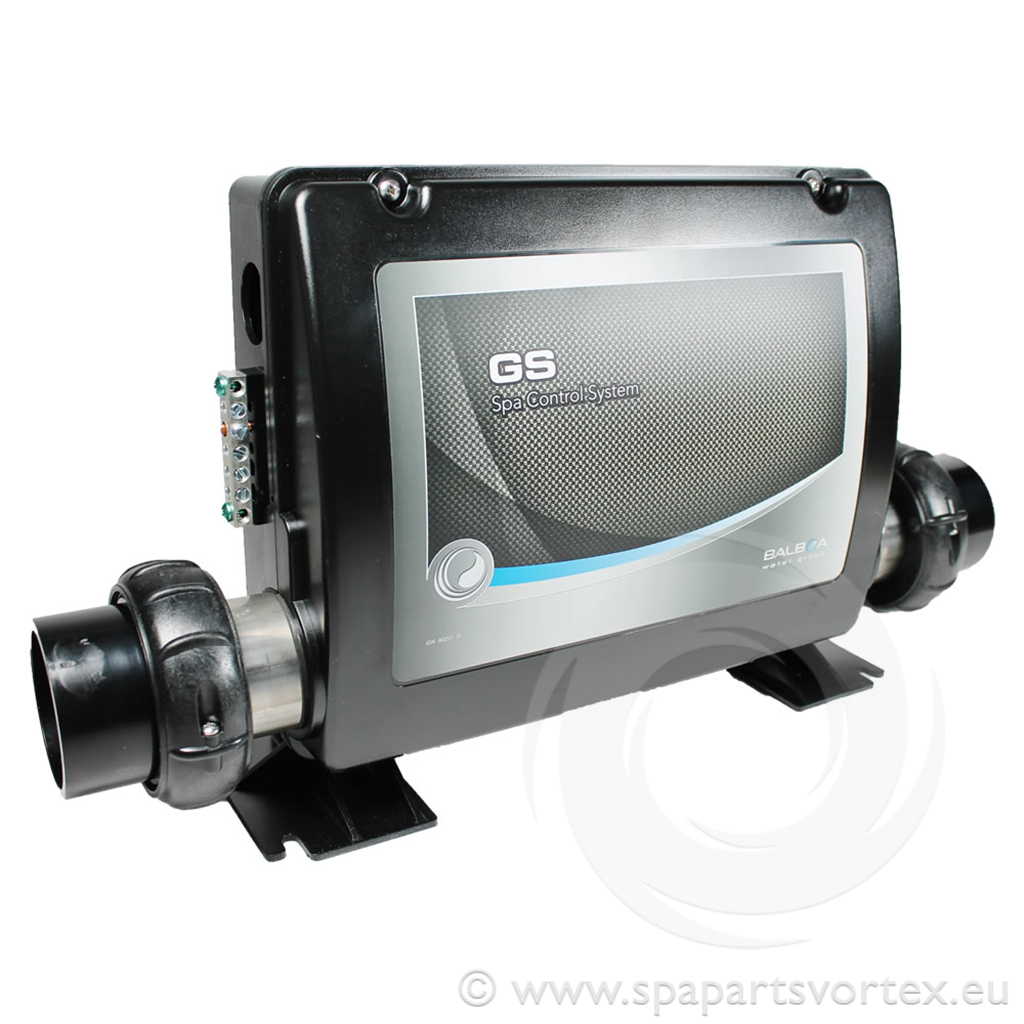

Balboa GS501Z Control Box
1 Pump + Circ + Blower + Ozone + Light
Product Description
The Balboa GS501Z control box is a 230 V spa system with a 3.0 kW integrated M7 heater. It supports one single- or dual-speed pump with optional circulation pump, an air blower, ozone generator, and 12 V lighting. The unit is compatible with Balboa VL series topside panels. It operates on a 230 V, 50 Hz supply and is suitable for retrofit or replacement installations.
Specifications:
- Pump 1: Single- or dual-speed (with optional circulation pump)
- Circulation Pump: Optional
- Blower: Single-speed
- Ozone: Supported
- Lighting Output: 12 V
- Heater: 3.0 kW integrated M7
- Topside Compatibility: Balboa VL series (e.g., VL200, VL240, VL260, VL400, VL401, VL402, VL403, VL404, VL406T/U)
- Power Supply: 230 V, 50 Hz
- Dimensions: 268 mm (H) x 311 mm (W) x 112 mm (D)
- Plumbing Size: 2" unions
- Relay Count: 3 total
Quantity: Sold individually.
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : GS |
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : GS |
Product Description
The Balboa GS501Z control box is a 230 V spa system with a 3.0 kW integrated M7 heater. It supports one single- or dual-speed pump with optional circulation pump, an air blower, ozone generator, and 12 V lighting. The unit is compatible with Balboa VL series topside panels. It operates on a 230 V, 50 Hz supply and is suitable for retrofit or replacement installations.
Specifications:
- Pump 1: Single- or dual-speed (with optional circulation pump)
- Circulation Pump: Optional
- Blower: Single-speed
- Ozone: Supported
- Lighting Output: 12 V
- Heater: 3.0 kW integrated M7
- Topside Compatibility: Balboa VL series (e.g., VL200, VL240, VL260, VL400, VL401, VL402, VL403, VL404, VL406T/U)
- Power Supply: 230 V, 50 Hz
- Dimensions: 268 mm (H) x 311 mm (W) x 112 mm (D)
- Plumbing Size: 2" unions
- Relay Count: 3 total
Quantity: Sold individually.
