Product Description

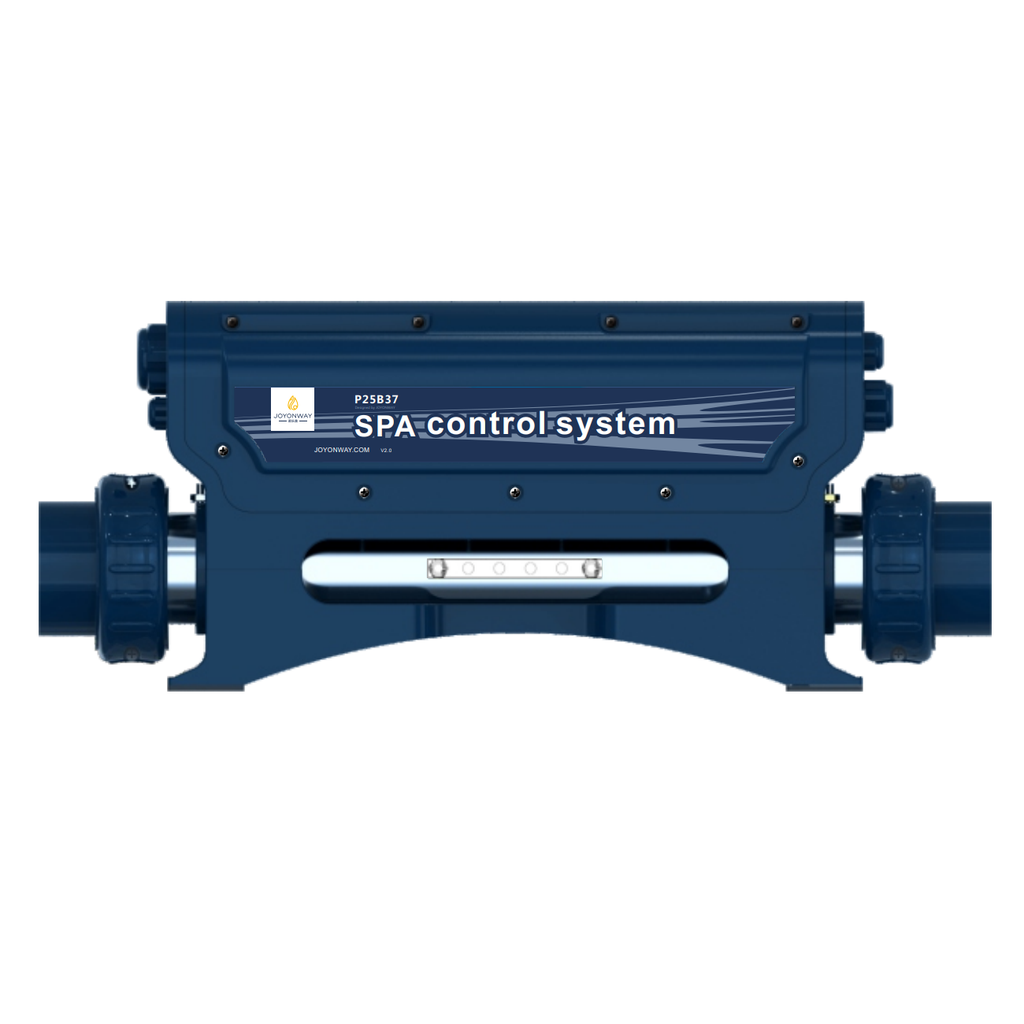

Joyonway P25B37 Control Box
The Joyonway P25B37 control box is a 230 V, 50 Hz spa control system supporting a single or dual-speed pump, optional circulation pump, air blower, 3 kW heater, ozone, and 12 V lighting. It includes 2-inch socket heater union sleeves and AMP connectors.
Specifications:
- Pump 1: Single (with circ pump) or dual-speed (without circulation pump)
- Air Blower: Supported
- Heater: 3 kW
- Ozone: Supported
- Light: 1 unit, 12 VDC 15W max
- Connections: 2-inch socket heater union sleeves, AMP connectors
- Dimensions (including heater): 434 mm (L) x 201 mm (H) x 82 mm (W)
- Dimensions (box only): 360 mm (L) x 201 mm (H) x 82 mm (W)
Compatible with: PB553, PB554 and PB555 topsides (sold separately)
Product Attributes
| Brand : Joyonway |
| Power kW : 3kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : PB |
Product Attributes
| Brand : Joyonway |
| Power kW : 3kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : PB |
Product Description
Joyonway P25B37 Control Box
The Joyonway P25B37 control box is a 230 V, 50 Hz spa control system supporting a single or dual-speed pump, optional circulation pump, air blower, 3 kW heater, ozone, and 12 V lighting. It includes 2-inch socket heater union sleeves and AMP connectors.
Specifications:
- Pump 1: Single (with circ pump) or dual-speed (without circulation pump)
- Air Blower: Supported
- Heater: 3 kW
- Ozone: Supported
- Light: 1 unit, 12 VDC 15W max
- Connections: 2-inch socket heater union sleeves, AMP connectors
- Dimensions (including heater): 434 mm (L) x 201 mm (H) x 82 mm (W)
- Dimensions (box only): 360 mm (L) x 201 mm (H) x 82 mm (W)
Compatible with: PB553, PB554 and PB555 topsides (sold separately)
