(Davey) Spa Power SP1200 Pack 3.5kW
Product Description

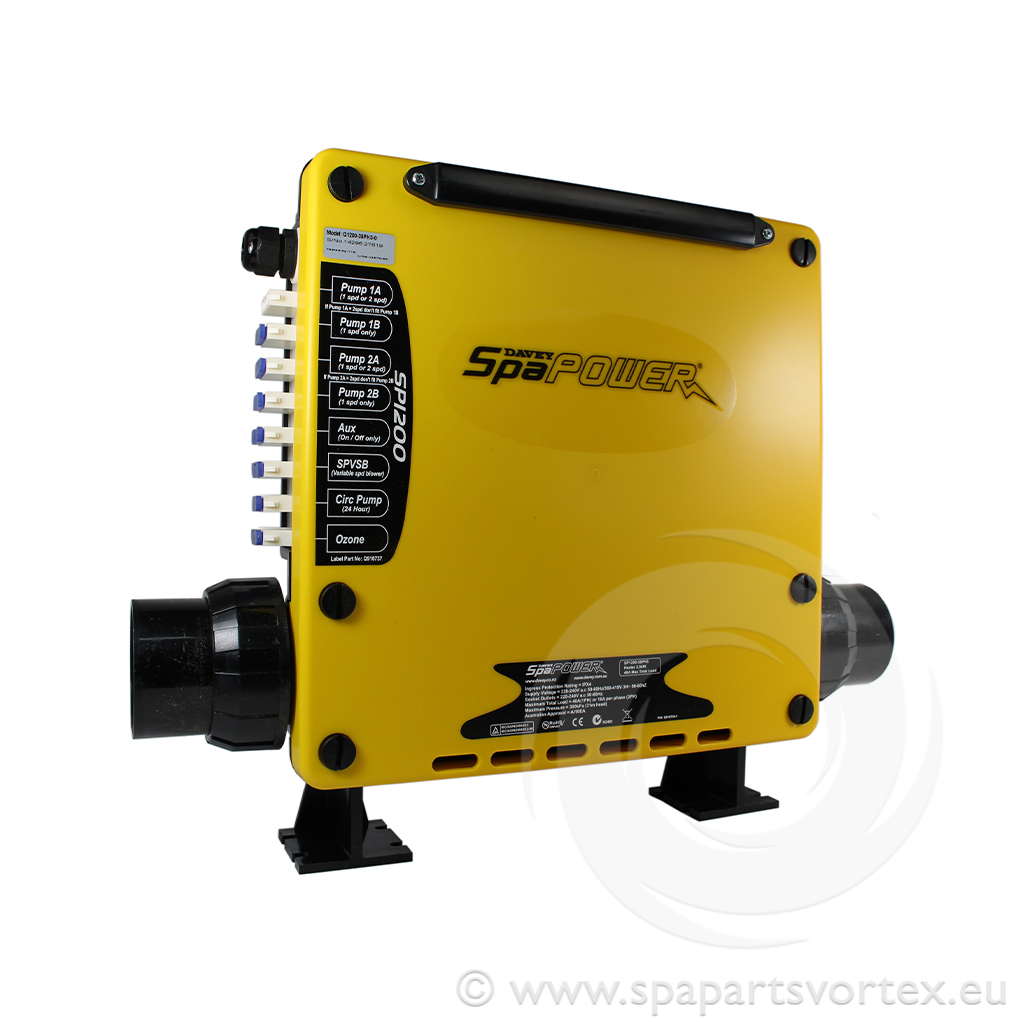

Davey Spa Power SP1200 Pack 3.5kW – Comprehensive Spa Control
The Davey Spa Power SP1200 Pack with a 3.5kW heater is designed for versatile spa system management, accommodating multiple pump configurations and accessories.
Electrical Specifications:
- Voltage: 230 VAC
- Frequency: 50 Hz
- Maximum Current: 40 A
Heater Specifications:
- Power Output: 3.5 kW
- Material: Incoloy element
- Flow Sensor: Integrated optical sensor
Pump Configurations:
- Supports one or two single-speed or two-speed pumps
- Optional connection for an air blower or an additional single-speed pump
- Circulation pump compatibility
Additional Features:
- Ozone Generator Port: Single output
- Lighting: 12V connection
- Heater Connections: 2-inch socket union sleeves
This system is engineered to support large spa pools and swim spas with flexible configurations and efficient control capabilities.
Product Attributes
Brand: Davey |
Product Type: Control Box |
Max Pumps: 2 |
Power kW: 3.5kW |
Circ Pump: Yes |
Blower: Yes |
Total Comp. Relays: 4 |
Heater Size: 2 Inch |
Product Attributes
Brand: Davey |
Product Type: Control Box |
Max Pumps: 2 |
Power kW: 3.5kW |
Circ Pump: Yes |
Blower: Yes |
Total Comp. Relays: 4 |
Heater Size: 2 Inch |
Product Description
Davey Spa Power SP1200 Pack 3.5kW – Comprehensive Spa Control
The Davey Spa Power SP1200 Pack with a 3.5kW heater is designed for versatile spa system management, accommodating multiple pump configurations and accessories.
Electrical Specifications:
- Voltage: 230 VAC
- Frequency: 50 Hz
- Maximum Current: 40 A
Heater Specifications:
- Power Output: 3.5 kW
- Material: Incoloy element
- Flow Sensor: Integrated optical sensor
Pump Configurations:
- Supports one or two single-speed or two-speed pumps
- Optional connection for an air blower or an additional single-speed pump
- Circulation pump compatibility
Additional Features:
- Ozone Generator Port: Single output
- Lighting: 12V connection
- Heater Connections: 2-inch socket union sleeves
This system is engineered to support large spa pools and swim spas with flexible configurations and efficient control capabilities.
