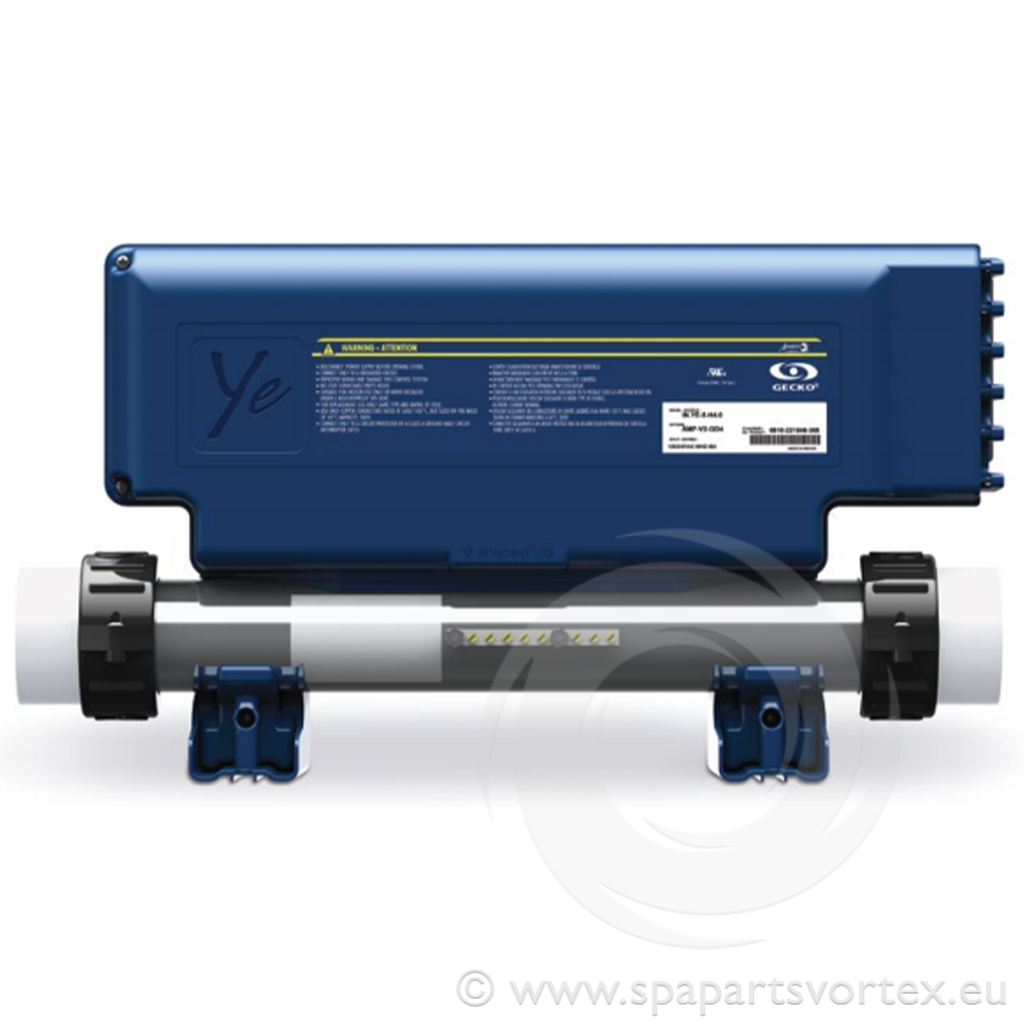

Gecko IN.YE5-V3 Control Box 3KW
Product Description
The Gecko IN.YE5-V3 Control Box is a robust spa control system with five configurable outputs, supporting a range of pumps, blowers, and auxiliary components. It features AMP or Quick Connect options, making it versatile and compatible with multiple topside panels. The system includes a 3kW heater and is designed for efficient and reliable spa management. It supports In.Touch 2 and 3 connectivity for enhanced control, offering flexibility for spa upgrades and retrofits.
Key Features:
- Outputs:
- Circ Pump
- Pump 1 (dual-speed pumps use 2 outputs)
- Pump 2
- Pump 3
- Pump 4
- Blower
- Additional Outputs:
- Ozone (usually shared with circ pump via splitter)
- Light: 12VDC 1,3 A
- Heater: 3kW
- Integration of the in.mix 300 color system on the main board
- in.lu.me cables and LED lights can be connected directly to the in.ye-V3
- in.Temp Heat pump ready (extension board)
Compatibility:
- Supports 1, 2 and 3 phase input power
- Swim mode for swim spa (k1000/1001 keypad needed)
- Compatible with a wide range of topside panels, including:
- IN.K120 auxiliary panel
- IN.K200, IN.K300, IN.K19, IN.K35, IN.K45, IN.K450
- IN.K600 Static (not compatible with the Graphic version)
- IN.K500, IN.K800, IN.K1000
Connections:
- AMP or Quick Connect
Additional Notes:
- Supports IN.Touch 2 and 3 connectivity for remote operation
- Must be installed by a competent individual or tradesman. Incorrect installation may invalidate the warranty
Dimensions:
- Length: 497 mm (19.57 Inch)
- Width: 126 mm (4.96 Inch)
- Height: 273 mm (10.75 Inch)
Important: This in.ye system is designed to work seamlessly with in.temp heat pumps. To enable this compatibility, ensure the inclusion of the 0610-100006 in.ye-v3 extension board B-EXT-COM-RS485.
Product Attributes
| Product Type : Control Box |
| Brand : Gecko |
| Max Length : 420mm |
| Max Height : 260mm |
| Max Pumps : 4 |
| Power kW : 3.0kW |
| Circ Pump : Yes |
| Blower : Yes |
| Max Depth : 110mm |
| Total Comp. Relays : 5 |
| Plumbing Size : 2" |
