Product Description

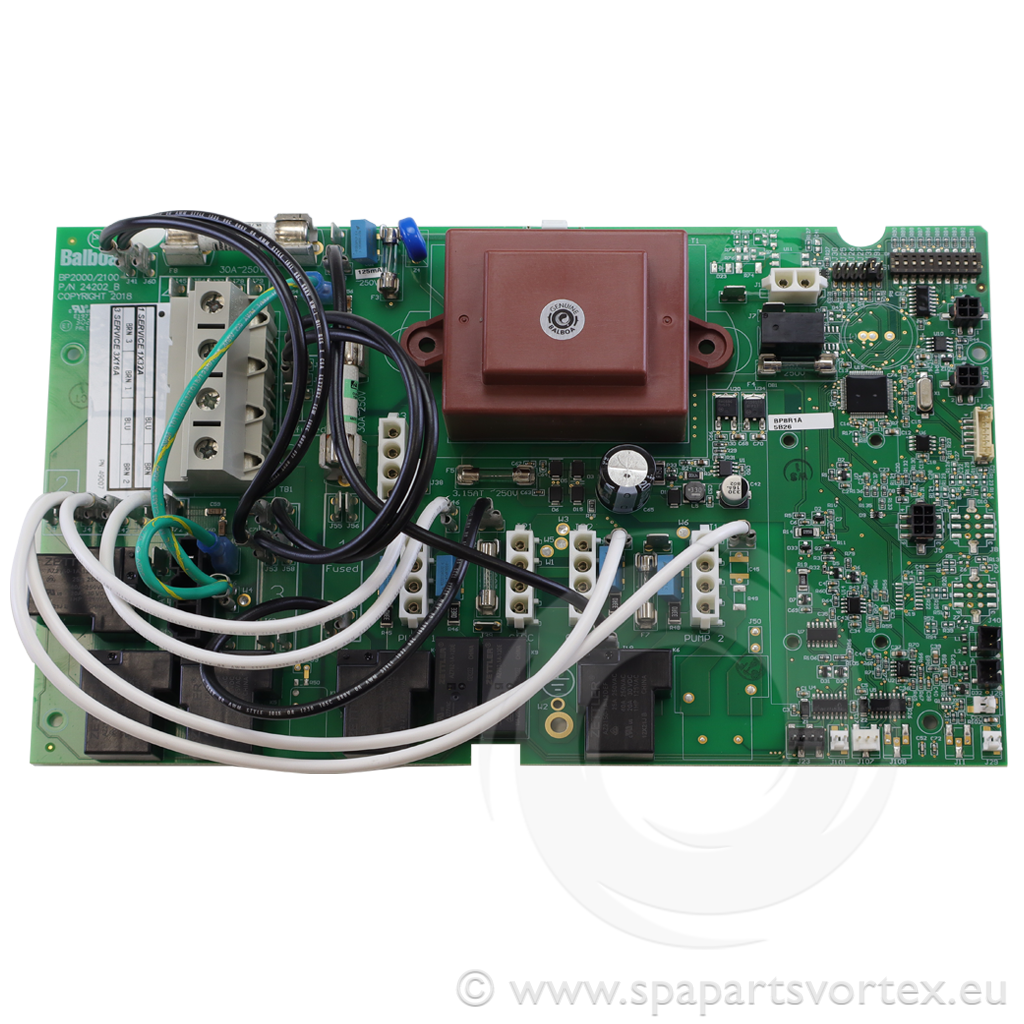

The Balboa BP10 PCB is designed for advanced spa and swim spa setups. It replaces the Balboa BP214PBC PCB (4pumps + Blower + Circulation pump) and the Balboa BP21MS3B PCB (3pumps + Blower + Circulation pump + Microsilk pump) which are being discontinued by Balboa. It is important to note that the BP10 is indeed a combination of the BP214PBC and BP21MS3B in a single PCB and it provides equivalent functionality for all BP214PBC and BP21MS3B applications/setups.

It supports a circulation pump, up to four pumps with single- or dual-speed options, an air blower, ozone, lighting, and AV connections. It operates on a 230 V, 50 Hz supply.

Specifications:

  • Circulation Pump: Supported
  • Pump 1: Single or dual-speed
  • Pump 2: Single or dual-speed
  • Pump 3: Single-speed
  • Pump 4: Single-speed
  • Air Blower: Single-speed (only possible if Pump 2 is single-speed)
  • Heater: 3 kW
  • Ozone: 1 connection
  • Light: 1 unit, 10V
  • AV: CHZ 230V connection available
  • Power Supply: 230 V, 50 Hz

Quantity: Sold individually
