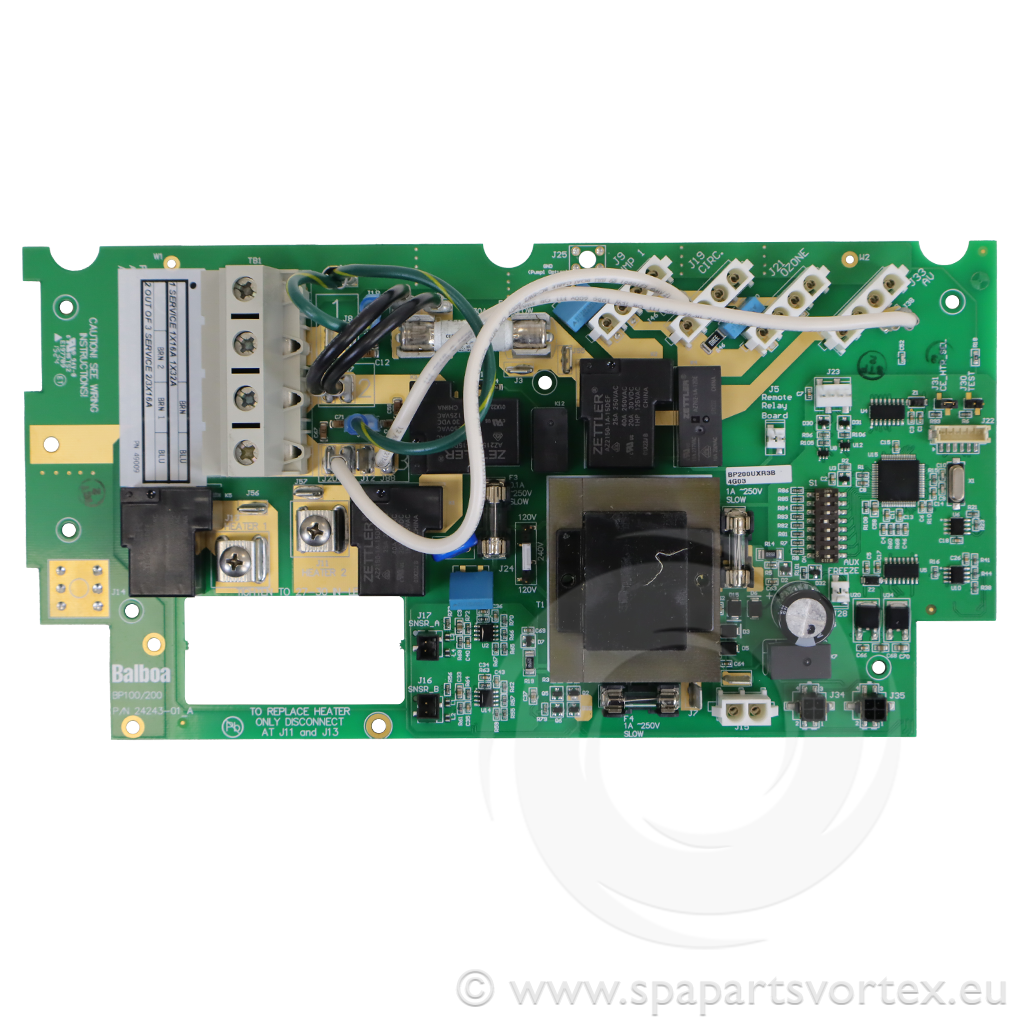

Balboa BP200UX 3.0KW PCB
Product Description
Balboa BP200UX 3.0KW PCB is designed for use in spa and hot tub systems, offering support for multiple pumps, a circulation pump, air blower, heater, and more. It also includes a WiFi receiver for iPhone operation, making it compatible with the BP200 control box and various topside controls from the TP range.
Important Information: The reference used now by Balboa is G1420 and replaces previous BP200UX PCBs (59507, 59508). If you want to use this PCB with a 2kW heater, please put J31 on 1 pin instead of 2.
Should an optional pump 2 or optional blower be used, the correct corresponding expander board will need to be added to the system.
- Volts: 230V
- Frequency: 50 Hz
- Pump 1: Single or dual speed pump, plus circulation pump if required
- Pump 2: x 1 single speed (optional)
- Air Blower: x1 (optional)
- Heater: x1 (3 kW)
- Ozone: x1
- Light: x1, 10V @ 1A Max
- Radio, TV/AV: Point available
- Feature: Designed for use with WiFi receiver for iPhone operation
- Compatibility: BP200 control box, TP range topside controls (TP900, TP800, TP600, TP400)
Box Quantity: Sold individually
Product Attributes
| Brand : Balboa |
| Power : Volts: 230 Hz: 50 |
| Product Type : PCB |
| Model / Series : BP |
Product Attributes
| Brand : Balboa |
| Power : Volts: 230 Hz: 50 |
| Product Type : PCB |
| Model / Series : BP |
Product Description
Balboa BP200UX 3.0KW PCB is designed for use in spa and hot tub systems, offering support for multiple pumps, a circulation pump, air blower, heater, and more. It also includes a WiFi receiver for iPhone operation, making it compatible with the BP200 control box and various topside controls from the TP range.
Important Information: The reference used now by Balboa is G1420 and replaces previous BP200UX PCBs (59507, 59508). If you want to use this PCB with a 2kW heater, please put J31 on 1 pin instead of 2.
Should an optional pump 2 or optional blower be used, the correct corresponding expander board will need to be added to the system.
- Volts: 230V
- Frequency: 50 Hz
- Pump 1: Single or dual speed pump, plus circulation pump if required
- Pump 2: x 1 single speed (optional)
- Air Blower: x1 (optional)
- Heater: x1 (3 kW)
- Ozone: x1
- Light: x1, 10V @ 1A Max
- Radio, TV/AV: Point available
- Feature: Designed for use with WiFi receiver for iPhone operation
- Compatibility: BP200 control box, TP range topside controls (TP900, TP800, TP600, TP400)
Box Quantity: Sold individually
