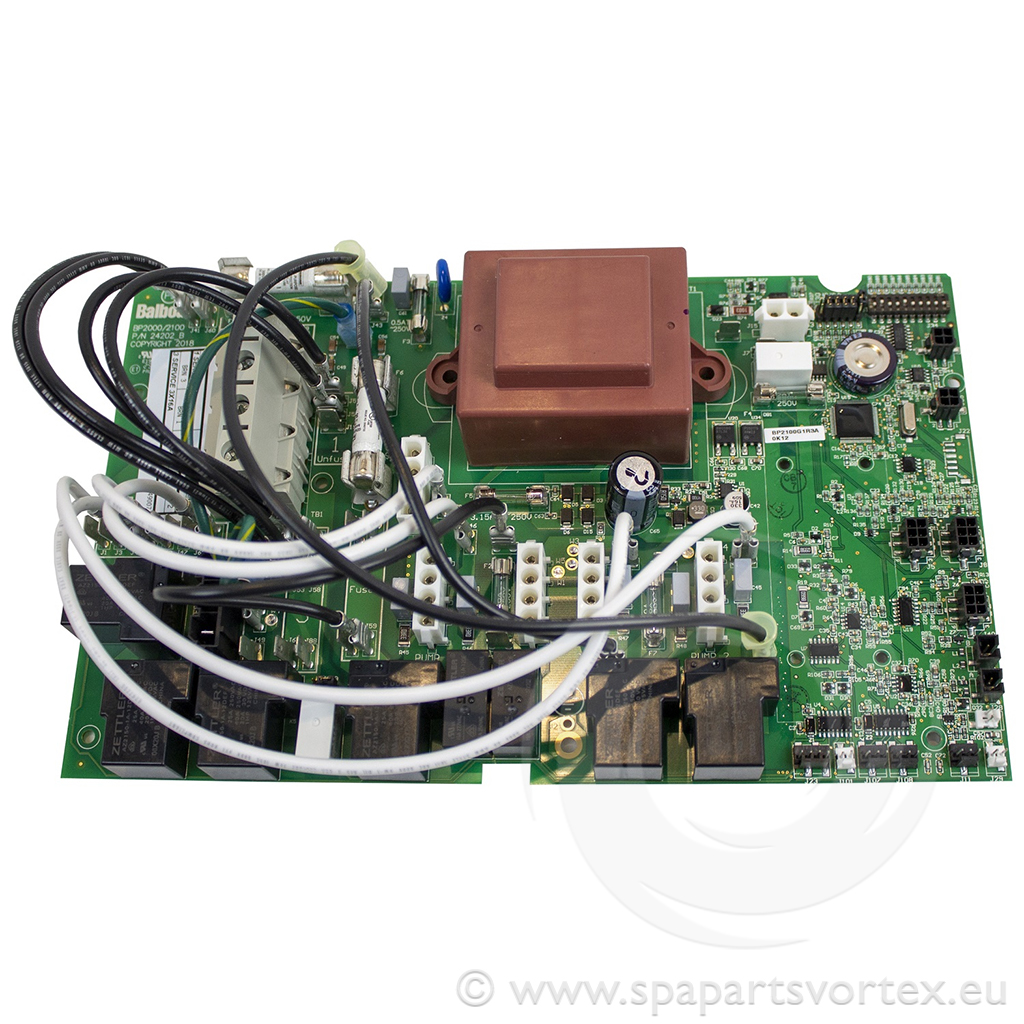

Balboa BP2100G1 PCB
Product Description
The Balboa BP2100G1 PCB is a replacement circuit board designed for the BP2100 control box, supporting a range of spa components including pumps, blower, heater, ozone, and lighting. It is compatible with topside controls from the TP range, such as TP900, TP800, TP600, and TP400. The PCB includes a red transformer for improved compatibility with newer Balboa equipment and can be used with a WiFi receiver for iPhone operation.
Specifications:
- Outputs:
- Pump 1: Single or dual-speed pump + optional circulation pump
- Pump 2: Single or dual-speed
- Pump 3: Single or dual-speed
- Air Blower: 1 unit (optional)
- Heater: 3kW
- Ozone: 1 unit
- Light: 1 unit, 10V @ 1A max
- Radio, TV/AV: Connection point available
Box Quantity: 1 unit
Product Attributes
| Brand : Balboa |
| Blower : Yes |
| Circ Pump : Yes |
| Length : 280mm |
| Model / Series : BP |
| No. of Pumps : 3 |
| Product Type : PCB |
| Width : 170mm |
