Balboa GL2001 mach3 PCB
PLASTIC BOX ONLY
Product Description

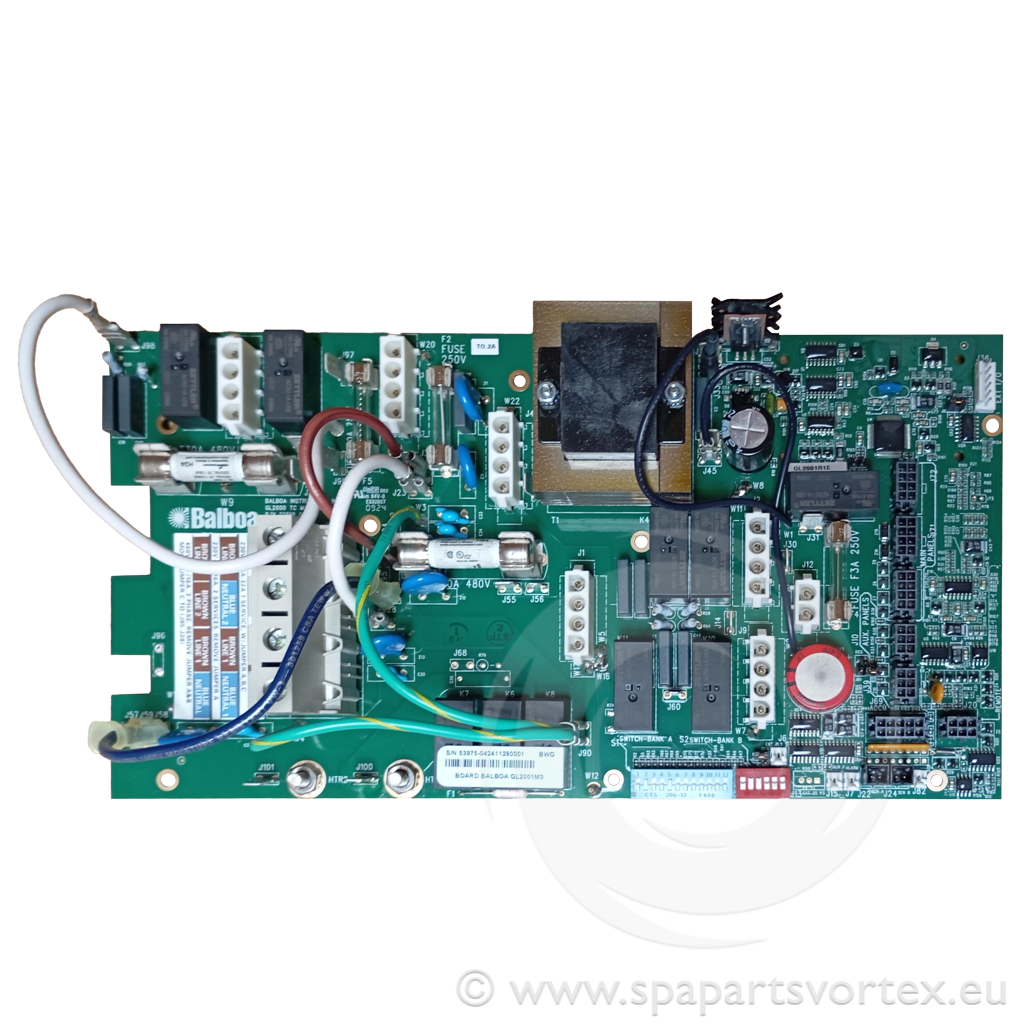

The Balboa GL2001 Mach3 PCB is a replacement circuit board for the GL2001 Mach3 control box, designed for precise management of spa systems. It supports various pump configurations, a heater, ozone, and light, and is compatible with ML range topside controls such as the ML400, ML700, and ML900. This PCB must only be used with a GL2000 Mach3 plastic control box and should be installed by a competent individual or tradesman to avoid damage and warranty invalidation. This PCB is used with an expander board (to buy separately).
Specifications:
- Power: 230V, 50Hz
- Pump Support:
- Pump 1: Single or dual-speed pump + circulation pump (if required)
- Pump 2: Single or dual-speed
- Air Blower: 1 unit
- Outputs:
- Heater: Yes
- Ozone: Yes
- Light: 12V or 230V
- Sensors: M7 x 2
- Pressure Switch: No
Compatibility:
- Control Box: GL2001 Mach3 control box (plastic only)
- Topside Controls: ML range, including ML400, ML700, ML900
Dimensions:
- Length: 290 mm
- Height: 155 mm
Box Quantity: 1 unit
Product Attributes
| Brand : Balboa |
| Blower : Yes |
| Circ Pump : Yes |
| Length : 290mm |
| Model / Series : GL |
| No. of Pumps : 2 |
| Product Type : PCB |
| Width : 150mm |
Product Attributes
| Brand : Balboa |
| Blower : Yes |
| Circ Pump : Yes |
| Length : 290mm |
| Model / Series : GL |
| No. of Pumps : 2 |
| Product Type : PCB |
| Width : 150mm |
