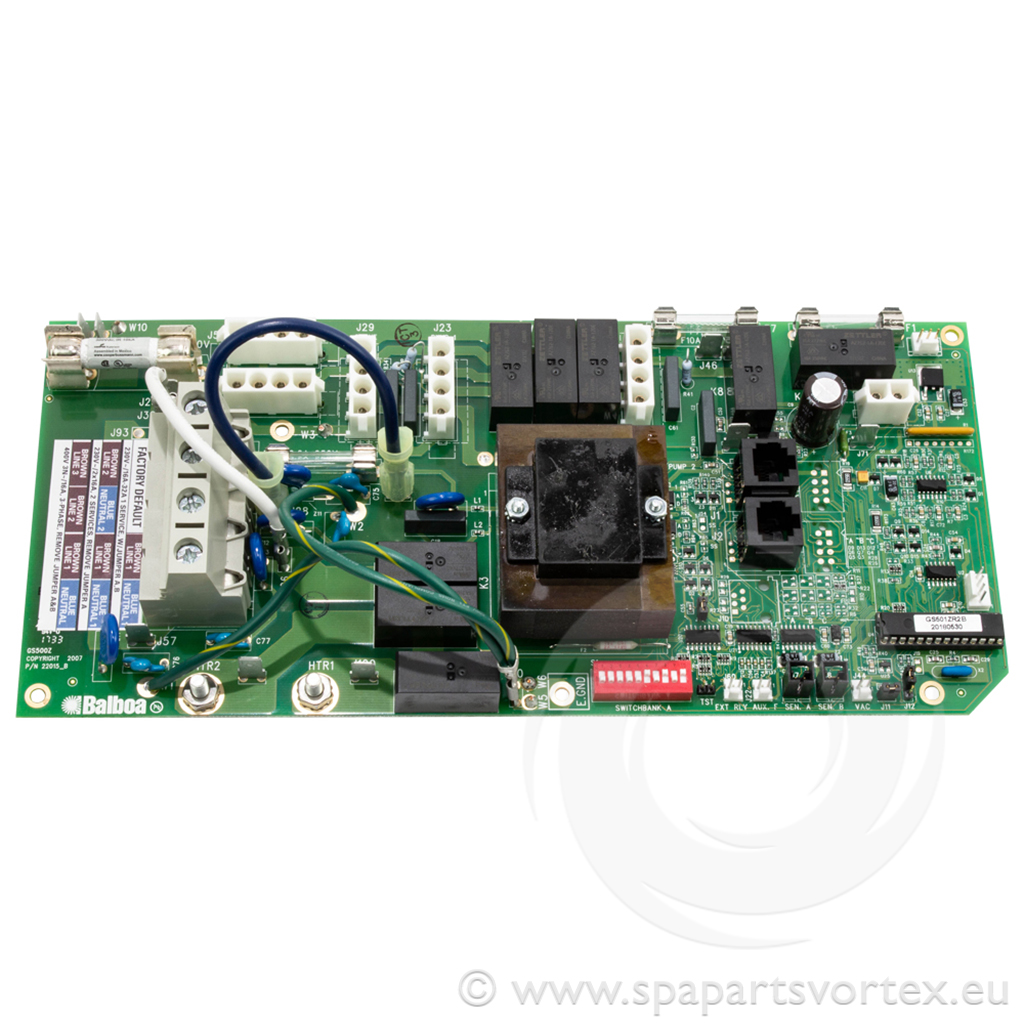

Balboa GS501Z PCB
Product Description
BALBOA GS501Z PCB is designed for use with the GS500Z and GS501Z control boxes, supporting pumps, blower, heater, ozone, light, and more. It is compatible with some VL range topside controls, such as VL200, VL240, and VL40* ranges.
Important Information: The reference used now by Balboa is G1551 and replaces previous GS500Z & GS501Z Control Boxes and PCBs (54523, 54509, 54510, 54511, 54512, 55514).
Features:
- Power: 230V / 50HZ
- Pump 1: Single or dual speed + circulation pump (if required)
- Air Blower: Yes (optional)
- Heater: Yes
- Ozone: Yes
- Light: 12V
- Sensor Style: M7 x 2
- Pressure Switch: No
- Compatible With:
- J17 port: Air blower or single-speed pump (10A fuse protection)
Compatibility:
- GS500Z and GS501Z control boxes.Used with Spaform, Spaform Esperanto Range and more. Great Lakes GGS501 CE 53556 (box code 53555-01)
- Topside controls from the duplex VL range such as the VL404 and the MVP260.
Box Quantity: 1 unit per box.
Notes:
This PCB is used as a replacement for an existing GS500Z or GS501Z control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Product Attributes
| Brand : Balboa |
| Length : 280mm |
| Model / Series : GS |
| Product Type : PCB |
| Width : 130mm |
