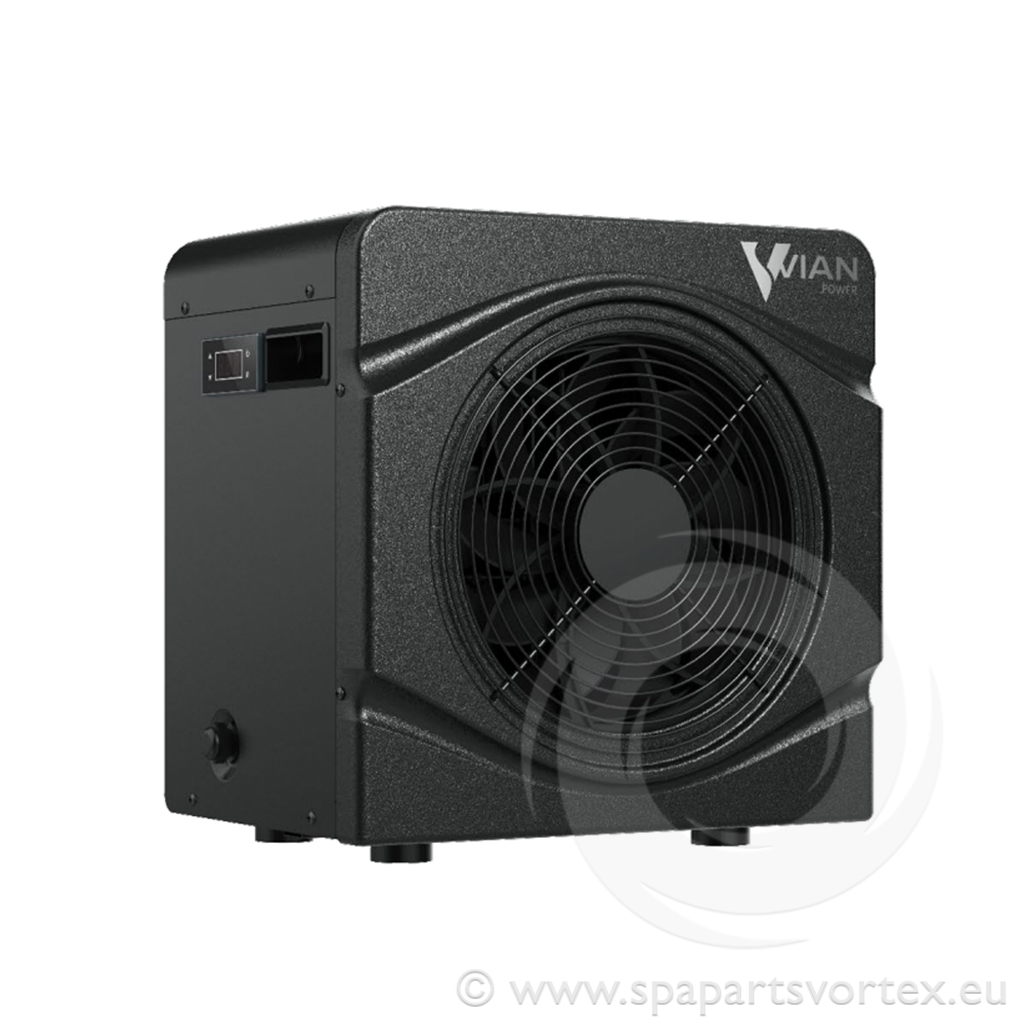

Vian Power C5 plus Heat Pump

https://spaparts.glodo.cloud/web/image/product.template/1490/image_1920?unique=c936c8a

Not Available For Sale

  • Brand
  • Product Type
  • Colour
  • Depth
  • Length
  • Height

This combination does not exist.

Brand: VIAN
Product Type: Heat Pump
Colour: Black
Depth: 290mm
Length: 470mm
Height: 430mm
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay

Tech Spec

Vian Power C5 plus
Full DC Inverter Heat Pump
KW Out @C.O.P @
 CAPACITY @ ℃100 - 50 % Power100 - 50 % Power
Plus 25 ℃5.03 - 2.515.94 - 8.73
Plus 20 ℃4.59 - 2.295.46 - 8.03
Plus 15 ℃4.12 - 2.064.89 - 7.19
Plus 10 ℃3.68 - 1.844.48 - 6.59
Plus 05 ℃3.53 - 1.764.28 - 6.29
 0.0 ℃3.37 - 1.684.08 - 6.00
Minus 5 ℃2.84 - 1.423.46 - 5.09
Minus 10 ℃2.14 - 1.072.96 - 4.35
 Capacity KW 27/24 (DB/WB)2.1kw - 5.1kw
UsageHot Tub
TypeFull DC Inverter Technology
Max Power Draw0.168 - 0.898 KW
Power Supply220-240 V 50HZ Single Phase
Power Cable5mtrs H07RN-F cable
Ambient Temp Operating Rangeminus 10℃  to  plus 43 ℃
Heating Range15℃ to 40℃
Cooling Function
Max Water Volume20m3 (20,000 ltrs)
RefridgerantR32
CompressorRotary
Heat ExchangerTitanium
Gas Control(EEV) Electronic Expansion Valve
Sound @ 1m DB32 to 45
Required Flow Rate2.5 mh3   (41.6 lpm)
Input Line Control✓
Pump Power Circuit 1.59 (A) max✓
WI-FI
Unit Size (L-D-H) mm470 / 290 / 430
Net Weight kg23.5 KG


Connection Options

C5 on/off model only - There are THREE options when connecting this model to a Balboa or Gecko system -

1. DIRECTLY POWER FROM HEATER TERMINALS (BALBOA ONLY*)

*If you do this option with Gecko, you will experience periodic beeping from the heat pump

2. - USE THE AUX HEATER SPADE TERMINALS (BALBOA ONLY)

3. - ANY 230v CONSTANT OUT (GECKO & BALBOA or Separate 230v supply)

Please can this be noted when supplying C5 on/off model
