LX JA100 with Air Switch (optional)
Product Description

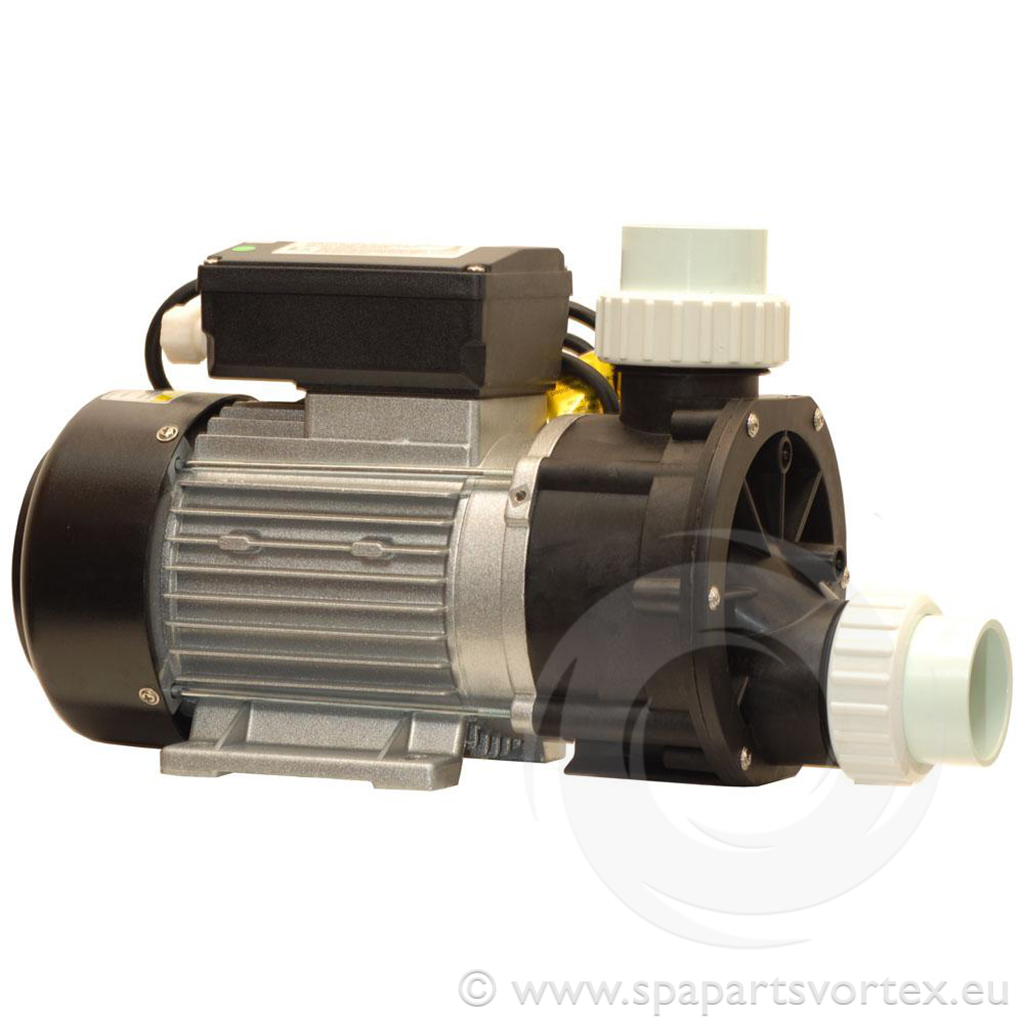

LX JA100 Circulation Pump with Optional Air Switch – Technical Specifications
The LX JA100 is a single-speed, 1.0 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
Specifications:
- Power Supply: 230 V, 50 Hz
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Dimensions: Length: 350 mm; Height: 205 mm; Width: 160 mm
Features:
- Design: Centre discharge with self-draining capability
- Construction: Thermally protected motor with a 15 µF capacitor
- Performance: Maximum flow rate of 320 L/min; maximum head of 11 m
- Compatibility: Suitable for various spa brands, including AMC Winer Spa, Chinese Spas, and Spa Serve
This pump ensures efficient and reliable operation in spa systems, with the option for manual control via an air switch.
