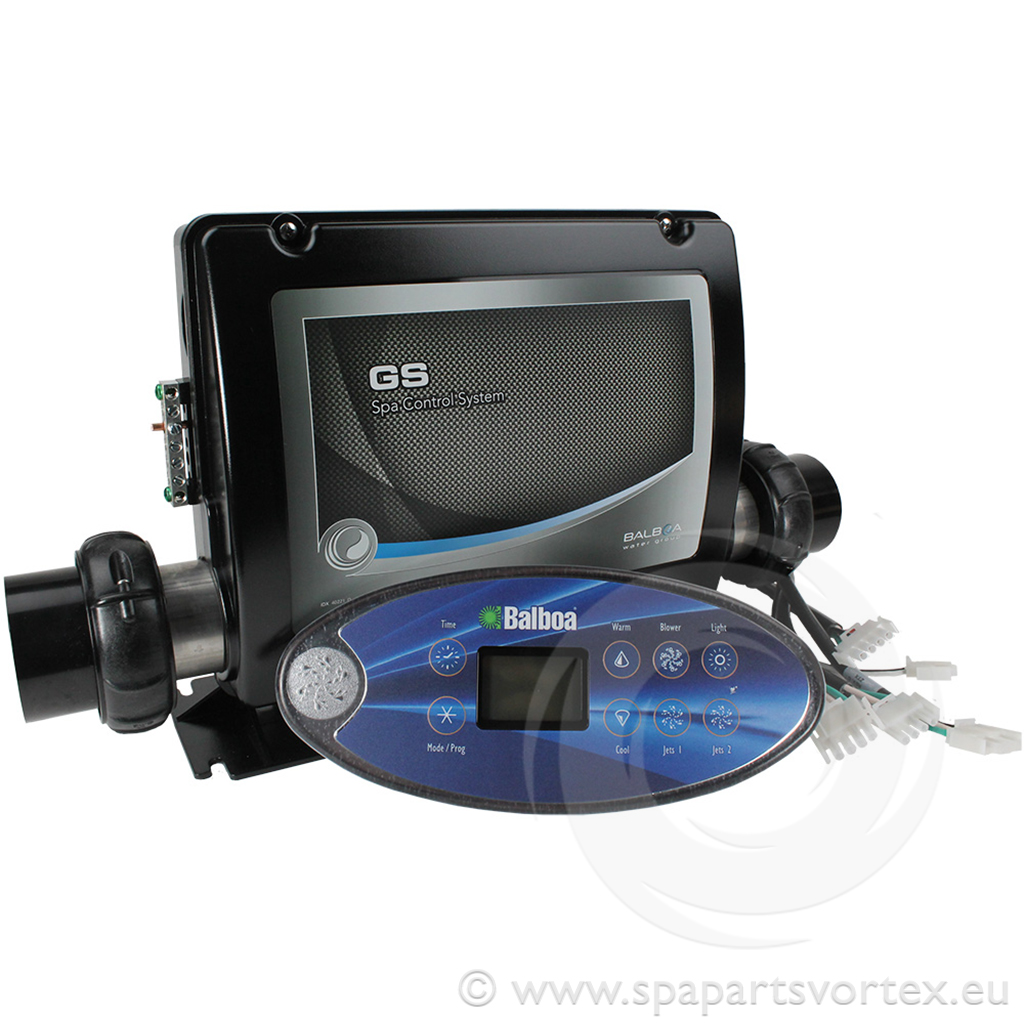

Balboa GS523DZ + VL802D
Control Box with Heater Tube + Matching Control Panel
Product Description
NOTE : PACK DISCONTINUED. The control box and this topside are no longer manufactured by Balboa. You can either replace the PCB by a GS523DZ PCB or upgrade to a new Balboa BP pack (control box + topside).
The Balboa GS523DZ Control System includes the GS523DZ control box and VL802D topside control, designed for advanced spa configurations, retrofits, and upgrades. It supports one single- or dual-speed pump with optional circulation pump, two single-speed pumps, an optional air blower, ozone, and 12 V lighting. The system includes radio, TV, and auxiliary connection points. The J17 port allows either an air blower or an additional single-speed pump protected by a 10A quick-blow fuse.
Specifications:
- Amperage: 16A or 32A
- Pump 1: Single or dual-speed with optional circulation pump
- Pump 2: Single-speed
- Pump 3: Single-speed
- Air Blower: 1 unit (optional)
- Heater: 3 kW
- Ozone: 1 unit supported
- Light: 1 unit, 12 V
- Radio/TV/AV: Connection point available
- Dimensions (including heater): 500 mm (L) x 270 mm (H) x 120 mm (W)
- Dimensions (box only): 320 mm (L) x 270 mm (H) x 120 mm (W)
- Topside Panel: 265 mm (L) x 117 mm (H)
- Topside Buttons: TIME, MODE, WARM, COOL, BLOWER, LIGHT, JETS 1, JETS 2 (Jets 2 button cycles Pump 2 and Pump 3 individually)
Items Included:
- Balboa GS523DZ control box
- Balboa VL802D topside control
Quantity: Sold individually.
