Pack Gecko IN.YE5-V3 / IN.K450 / in.touch3
Documents
Product Description
The Gecko IN.YE 5 with IN.K450 topside control is a versatile spa control system designed for retrofits and upgrades. Operating at 230VAC and 50Hz, it supports multiple pump configurations, includes AMP cable connections, and features 2-inch socket heater union sleeves. The IN.K450 topside panel offers intuitive control and a compact design. This pack comes with essential cables and a light adaptor plate for seamless integration into modern spa systems and now includes the in.touch3 that enables Wi-Fi connection to spas via the Gecko App.
Specifications:
- Voltage: 230VAC
- Frequency: 50Hz
- Connections: 2-inch socket heater union sleeves
- Cables Included:
- 2 x Dual-speed AMP cables
- 2 x Single-speed AMP cables
- Light adaptor cable AMP to MTA
- Light cable

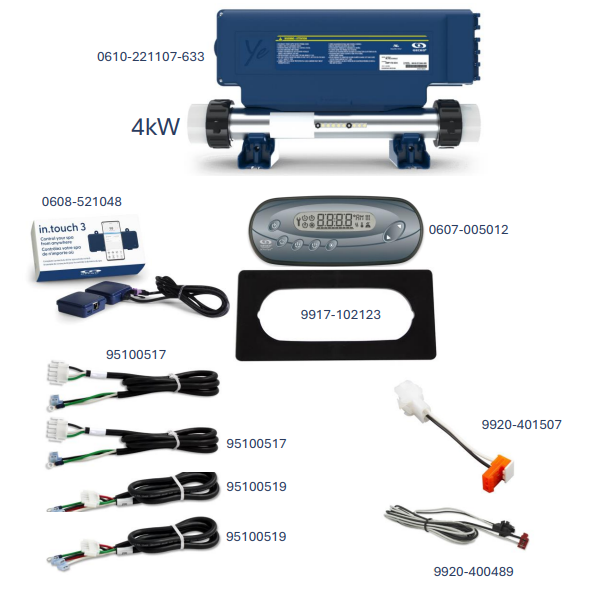

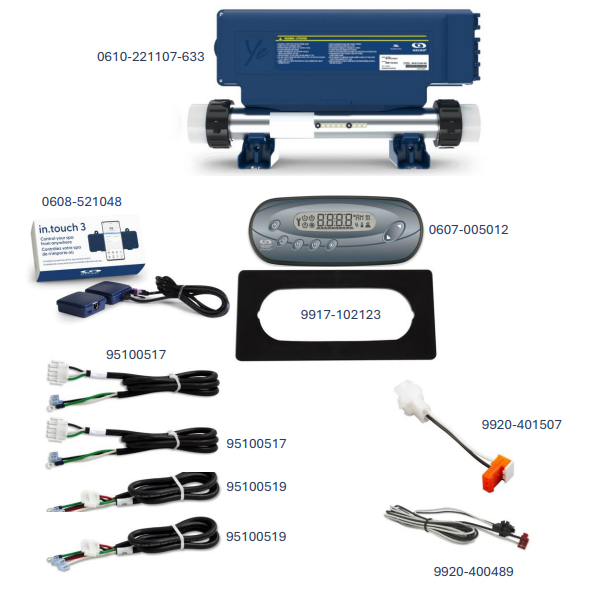

Items Included:
- Gecko IN.YE5-V3 Control Box with 4kW heater
- IN.K450 Topside Control + adapter plate
- in.touch 3 wifi module
Dimensions:
- Control Box: 490 mm (19.29 Inch) x 110 mm (4.33 Inch) x 280 mm (11.02 Inch)
- Topside Panel: 181 mm x 73 mm
Box Quantity: Sold individually.
Product Attributes
| Brand : Gecko |
| Max Depth : 110mm |
| Max Height : 260mm |
| Max Length : 420mm |
| Product Type : Control Sytem Bundle |
| Plumbing Size : 2" |
Product Attributes
| Brand : Gecko |
| Max Depth : 110mm |
| Max Height : 260mm |
| Max Length : 420mm |
| Product Type : Control Sytem Bundle |
| Plumbing Size : 2" |
