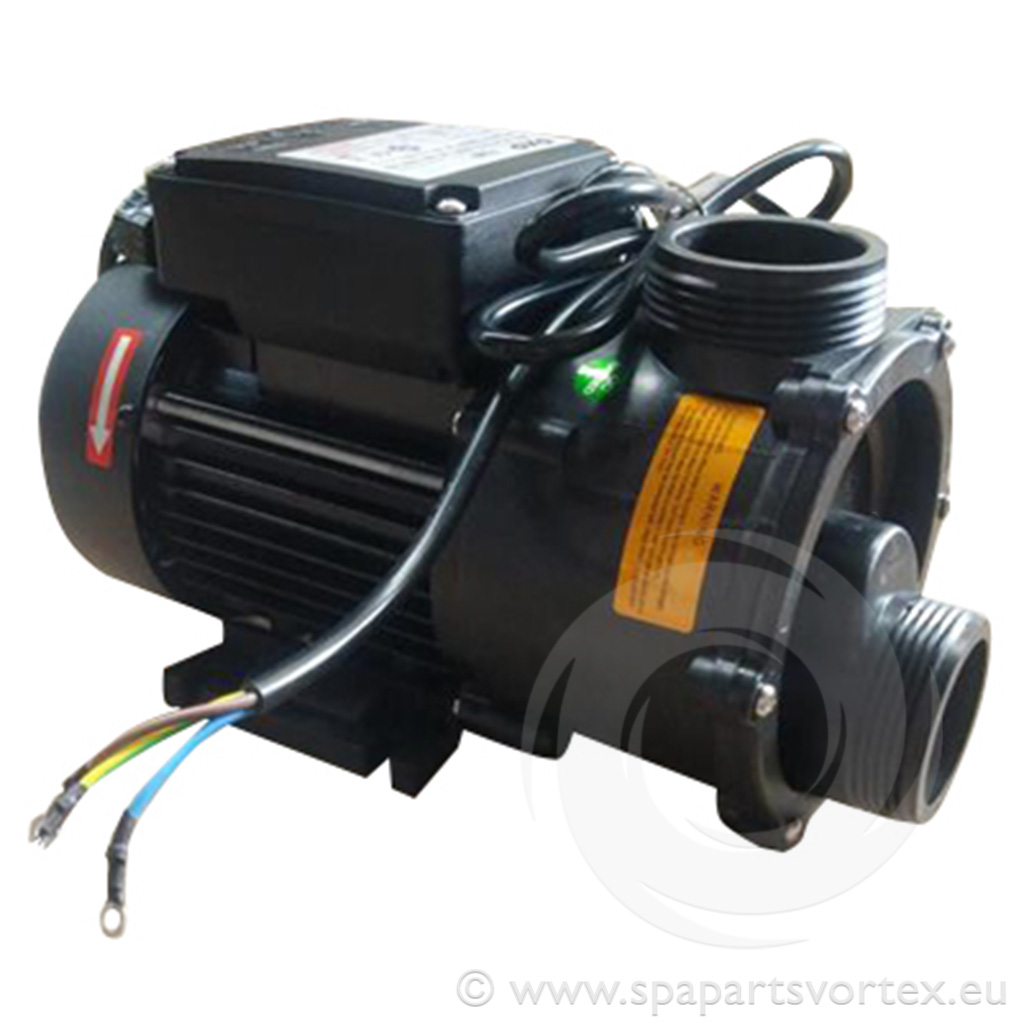

DXD-310T Circulation Pump 0.4HP
Product Description
The DXD-310T is a 0.4HP single-speed circulation pump designed for continuous operation in hot tubs and spas. It operates at 230 V, 50 Hz with a motor speed of approximately 2850 RPM. The pump delivers a maximum flow of 167 L/min and a maximum lift of 7.0 m. It features a 1.5-inch plumbing connection and includes a 30 µF capacitor. The unit is IPX5 rated with insulation class F and comes with a plain cable attached.
Specifications:
- Motor Power: 0.4 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Current Draw: Approximately 1.5 A
- RPM: 2850
- Maximum Flow: 167 L/min
- Maximum Lift: 7.0 m
- Capacitor: 30 µF
- Plumbing Connections: 1.5 inch
- Protection Grade: IPX5
- Insulation Class: F
- Weight: 5.5 kg
- Electrical Connections: Plain cable attached
- Additional Notes: Unions included.
Quantity: Sold individually.
Product Attributes
| Brand : DXD |
| Product Type : Circulation Pump |
| Height : 196 mm |
| HP : 0.33HP |
| Length : 330mm |
| Power kW : 0.25 kW |
| Width : 134mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
| Amperage : 1.5 Amps |
Product Attributes
| Brand : DXD |
| Product Type : Circulation Pump |
| Height : 196 mm |
| HP : 0.33HP |
| Length : 330mm |
| Power kW : 0.25 kW |
| Width : 134mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
| Amperage : 1.5 Amps |
Product Description
The DXD-310T is a 0.4HP single-speed circulation pump designed for continuous operation in hot tubs and spas. It operates at 230 V, 50 Hz with a motor speed of approximately 2850 RPM. The pump delivers a maximum flow of 167 L/min and a maximum lift of 7.0 m. It features a 1.5-inch plumbing connection and includes a 30 µF capacitor. The unit is IPX5 rated with insulation class F and comes with a plain cable attached.
Specifications:
- Motor Power: 0.4 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Current Draw: Approximately 1.5 A
- RPM: 2850
- Maximum Flow: 167 L/min
- Maximum Lift: 7.0 m
- Capacitor: 30 µF
- Plumbing Connections: 1.5 inch
- Protection Grade: IPX5
- Insulation Class: F
- Weight: 5.5 kg
- Electrical Connections: Plain cable attached
- Additional Notes: Unions included.
Quantity: Sold individually.
