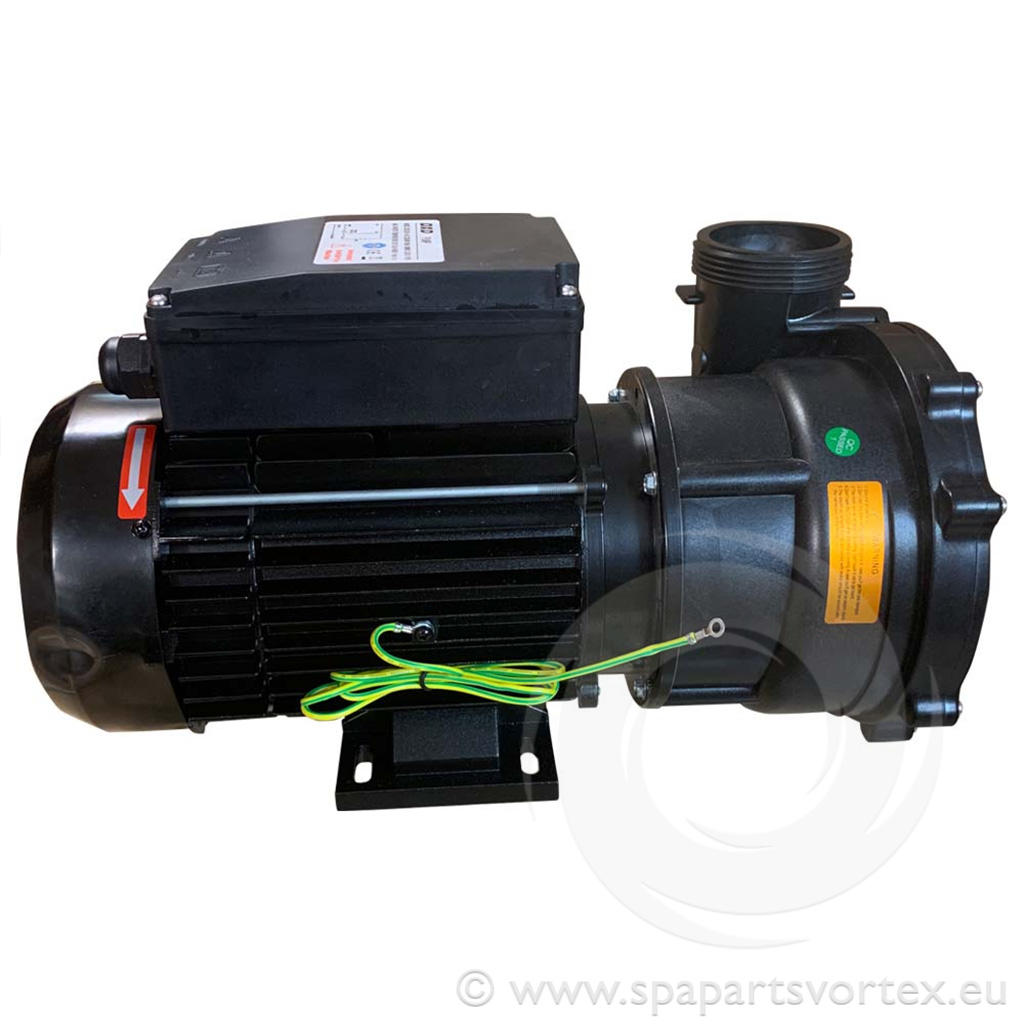

DXD-320E Pump Single Speed 2.0HP
Product Description
The DXD-320E is a high-performance 2.0HP single-speed pump designed for hot tubs, spas, and whirlpool baths. Operating at 230V, 50Hz, it delivers a maximum flow rate of 733 L/min and a maximum lift of 19.0 meters. With an impeller rotation speed of 2850 RPM, it ensures efficient water circulation. The pump features a 2.5" to 2" union connector and comes with a plain cable attached. It is rated IP55 for protection and has an insulation class B. The unit weighs approximately 15.0 kg.
Specifications:
- Motor Power: 2.0 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Power: 1.5 kW
- Current Draw: Approximately 6.5 A
- RPM: 2850
- Maximum Flow: 733 L/min
- Maximum Lift: 19.0 m
- Wet-End Impeller HP: 2.0 HP
- Capacitor: Not specified
- Plumbing Connections: 2.5" to 2" union connector
- Electrical Connections: Plain cable attached
- Protection Grade: IP55
- Insulation Class: B
- Additional Notes: Unions included.
Quantity: Sold individually.
Product Attributes
| Brand : DXD |
| Height : 245 mm |
| HP : 2.0HP |
| Length : 415mm |
| Power kW : 1.5 kW |
| Product Type : Massage Pump |
| Speeds : 1 speed |
| Width : 160mm |
| Plumbing Size : 2" |
| Amperage : 6.5 Amps |
Product Attributes
| Brand : DXD |
| Height : 245 mm |
| HP : 2.0HP |
| Length : 415mm |
| Power kW : 1.5 kW |
| Product Type : Massage Pump |
| Speeds : 1 speed |
| Width : 160mm |
| Plumbing Size : 2" |
| Amperage : 6.5 Amps |
Product Description
The DXD-320E is a high-performance 2.0HP single-speed pump designed for hot tubs, spas, and whirlpool baths. Operating at 230V, 50Hz, it delivers a maximum flow rate of 733 L/min and a maximum lift of 19.0 meters. With an impeller rotation speed of 2850 RPM, it ensures efficient water circulation. The pump features a 2.5" to 2" union connector and comes with a plain cable attached. It is rated IP55 for protection and has an insulation class B. The unit weighs approximately 15.0 kg.
Specifications:
- Motor Power: 2.0 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Power: 1.5 kW
- Current Draw: Approximately 6.5 A
- RPM: 2850
- Maximum Flow: 733 L/min
- Maximum Lift: 19.0 m
- Wet-End Impeller HP: 2.0 HP
- Capacitor: Not specified
- Plumbing Connections: 2.5" to 2" union connector
- Electrical Connections: Plain cable attached
- Protection Grade: IP55
- Insulation Class: B
- Additional Notes: Unions included.
Quantity: Sold individually.
