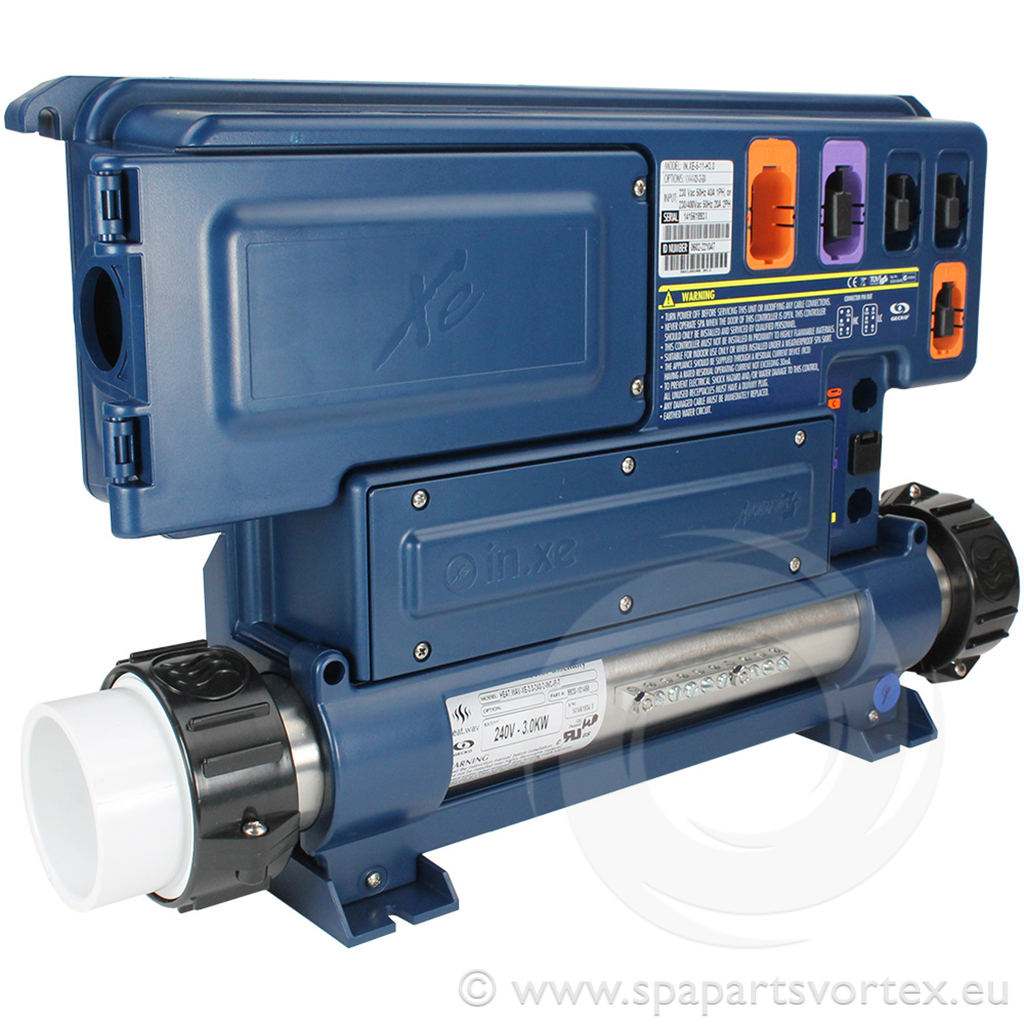

Gecko IN.XE Control Box

https://spaparts.glodo.cloud/web/image/product.template/800/image_1920?unique=97fbf14

Not Available For Sale

  • Brand
  • Product Type
  • Max Length
  • Max Height
  • Max Pumps
  • Power kW
  • Circ Pump
  • Blower
  • Max Depth
  • Total Comp. Relays
  • Heater Size

This combination does not exist.

  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description
Box Quantity: 5. Dimensions: Length: 442 mm Width: 136 mm Height: 299 mm

Volts: 230vac Hz: 50
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single speed
Air Blower: x 1 (optional)
Heater: 3kW
Ozone: x 1
Light: x1
Compatible With: Topsides, IN.K600 Static (not the Graphic version), IN.K200, K19.IN, K35.IN and IN.K450
Connections: Industry standard 2 inch female unions suitable for being glued.

Additional Notes:
This is a generic unlicensed control box.
It is the most ideal option for entry-level and mid-range spas.
We advise using this control box only for like for like replacement only.
IPX5 Rated Waterproof Design

This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Product Attributes
Brand: Gecko
Product Type: Control Box
Max Length: 480mm
Max Height: 270mm
Max Pumps: 2
Power kW: 3.0kW
Circ Pump: Yes
Blower: Yes
Max Depth: 100mm
Total Comp. Relays: 4
Heater Size: 2 Inch
Product Attributes
Brand: Gecko
Product Type: Control Box
Max Length: 480mm
Max Height: 270mm
Max Pumps: 2
Power kW: 3.0kW
Circ Pump: Yes
Blower: Yes
Max Depth: 100mm
Total Comp. Relays: 4
Heater Size: 2 Inch
Product Description
Box Quantity: 5. Dimensions: Length: 442 mm Width: 136 mm Height: 299 mm

Volts: 230vac Hz: 50
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single speed
Air Blower: x 1 (optional)
Heater: 3kW
Ozone: x 1
Light: x1
Compatible With: Topsides, IN.K600 Static (not the Graphic version), IN.K200, K19.IN, K35.IN and IN.K450
Connections: Industry standard 2 inch female unions suitable for being glued.

Additional Notes:
This is a generic unlicensed control box.
It is the most ideal option for entry-level and mid-range spas.
We advise using this control box only for like for like replacement only.
IPX5 Rated Waterproof Design

This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
