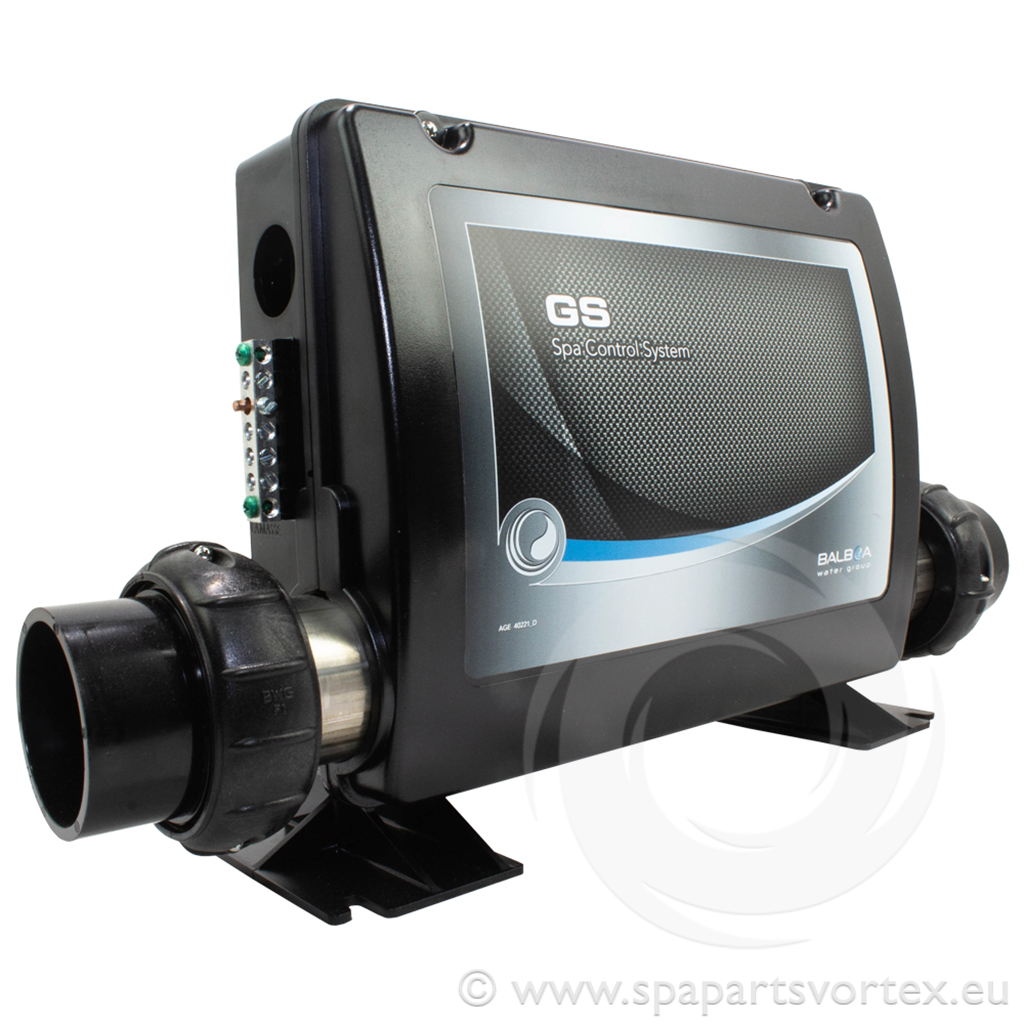

Balboa GS510SZ Control Box
1 Pump + Circ + Blower + Ozone + Light
Product Description
The Balboa GS510SZ control box is a 230 V spa system with a 3.0 kW integrated heater. It supports one single- or dual-speed pump with optional circulation pump, an air blower, ozone generator, and 12 V lighting output. The unit is compatible with Balboa VL series topside panels. It operates on a 230 V, 50 Hz supply and is suitable for retrofit or replacement installations.
Specifications:
- Pump 1: Single- or dual-speed (with optional circulation pump)
- Circulation Pump: Optional
- Blower: Single-speed
- Ozone: Supported
- Lighting Output: 12 V
- Heater: 3.0 kW integrated
- Topside Compatibility: Balboa VL series (e.g., VL700S, VL701S, VL702S)
- Power Supply: 230 V, 50 Hz
- Dimensions (with heater): 500 mm (L) x 270 mm (H) x 120 mm (W)
- Dimensions (box only): 320 mm (L) x 270 mm (H) x 120 mm (W)
- Plumbing Size: 2" unions
- Relay Count: 4 total
Quantity: Sold individually.
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : GS |
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : GS |
Product Description
The Balboa GS510SZ control box is a 230 V spa system with a 3.0 kW integrated heater. It supports one single- or dual-speed pump with optional circulation pump, an air blower, ozone generator, and 12 V lighting output. The unit is compatible with Balboa VL series topside panels. It operates on a 230 V, 50 Hz supply and is suitable for retrofit or replacement installations.
Specifications:
- Pump 1: Single- or dual-speed (with optional circulation pump)
- Circulation Pump: Optional
- Blower: Single-speed
- Ozone: Supported
- Lighting Output: 12 V
- Heater: 3.0 kW integrated
- Topside Compatibility: Balboa VL series (e.g., VL700S, VL701S, VL702S)
- Power Supply: 230 V, 50 Hz
- Dimensions (with heater): 500 mm (L) x 270 mm (H) x 120 mm (W)
- Dimensions (box only): 320 mm (L) x 270 mm (H) x 120 mm (W)
- Plumbing Size: 2" unions
- Relay Count: 4 total
Quantity: Sold individually.
